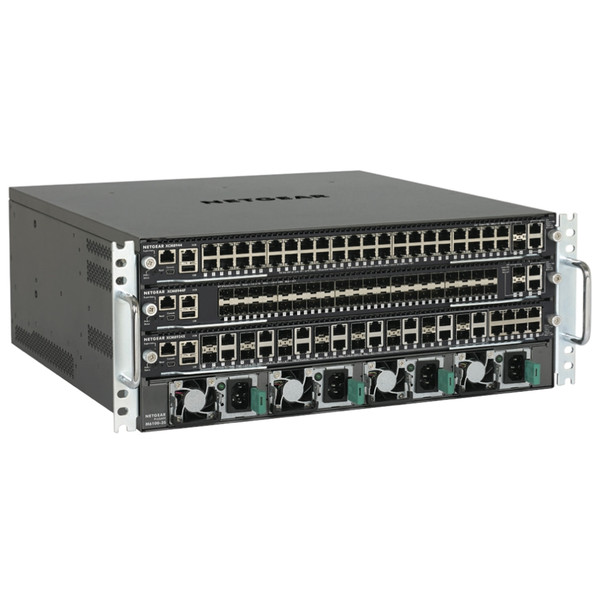

Netgear M6100-44G3-POE+ Chassis Starter Kit

Netgear M6100-44G3-POE+ is a customizable switching and routing solution. Remove, add and replace individual components, including hardware and software, to this L2/L3/L4 and IPv4/IPv6 service-rich appliance. Features include passive backplane, hitless failover, redundant fabric and redundant management to provide reliable availability. Best of all, this starter kit is incredibly cost-effective, meaning that itâ ideal for SMBs, enterprises and any time of business seeking a world-class infrastructure solution.

The Netgear M6100 series chassis starter kit does not arrive pre-assembled and the components may ship separately. The chassis supports a large number of ports, routing/switching capacity, throughput and other features to keep up with your complex networking requirements.

Netgear M6100 Series Starter Kit Quick Specs:

• Network Ports: configurable
• up to 144x 10/100/1000 RJ45 ports
• up to 120x 100/1000 SFP ports
• up to 72x 10GBASE-T RJ45 ports
• up to 48x 1000/10GBASE-X SFP+ ports
• Switching: L2, L3, L4
• Capacity: 1.4 Tbps total routing/switching
• Slot Performance: 2x 40G access to backplane
• 80G half-duplex, 160G full-duplex
• Fabric Speed: up to 480 Gbps intermodule
• Throughput: up to 357 Mpps intermodule, up to 1,071 Mpps intrablade
• I/O Slots: 3x open line-card slots
• PSU Bay: 4x power supply slots (N+1)
• Fan Tray: 1 slot (front-to-back)
• External PSU Bay: RPS/EPS connector
• Form Factor: 4U chassis
• Dimensions: 6.93â H x 17.39â D

Netgear M6100 Chassis XCM8903SK-10000S Package Contents:

Note: the product image may not accurately reflect package contents - illustration purposes only.

• Netgear M6100-35 empty chassis (XCM8903)
• 1 blade 40x1G + 4x10G (XCM8944)
• 1 PoE+ daughter card (XCM89P)
• 1 power supply unit (APS1000W)
• 1 fan tray front to back (AFT603)
• 2 blank panels for open blade slots
• 3 blank panels for empty PSU slots
• Handles for rack-mount kit
• Rack-mount kit for 2-post racks
• Sliding rails kit for 4-post racks
