Sangoma A40602DE 12 FXS 4 FXO PCI Express Card with Echo Cancellation

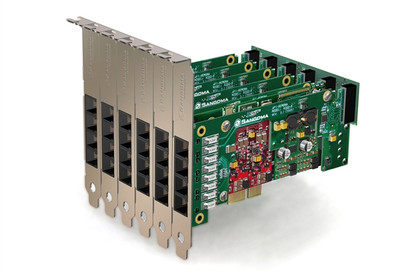

The Sangoma A40602DE is a fully scalable PCI Express card. Integrate your existing analog devices, such as phones and fax machines, into a PBX with the A40602DE's included 12 FXS ports and 4 FXO ports. This Sangoma card's modular design allows you to change the configuration of the ports as you see fit. Also, attached to the base card is an echo cancellation unit, enhancing the call quality of connected telephony devices.

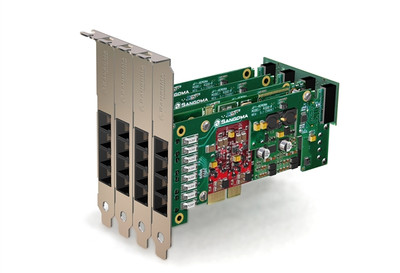

Sangoma's A400 series, including this A40602DE card, offers a higher port capacity per base card than the A200 series. The A400 series is made up of a PCI Express card and a Remora A400 card. The Remora A400 card provides a total of six slots for the expansion modules, whereas the A200 provides two slots. Each expansion module hosts either two FXO ports or two FXS ports. Stack two Remora A400 cards for a maximum capacity of 24 available ports.

Sangoma A400 12 FXS Port / 4 FXO Port PCI Express Card Quick Specs:

• Number of FXO Ports: 4
• Number of FXS Ports: 12
• Expandable: Yes
• Base Card: A400
• Maximum Ports: 24
• Echo Cancellation: Yes
• Slot Type: PCI Express

Sangoma A40602DE PCI Express Card Package Contents:

• Sangoma AFT PCI Express card
• A400 Remora daughterboard
• FXO-2 module (2)
• FXS-2 module (6)
• Echo cancellation unit
• 12-line telephone cable
