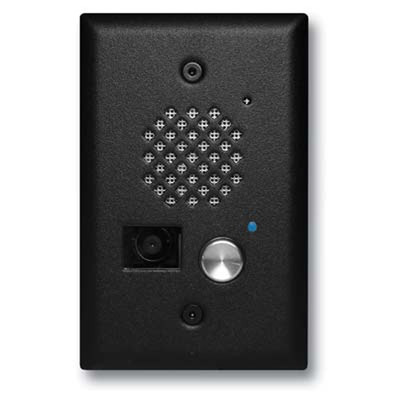

Viking E-50-BK Entry Phone with Camera in Black

Viking E-50-BK in Satin Black is a compact video door entry phone designed to be mounted in a single gang box. The versatile indoor entry phone provides two-way audio and one-way video communication in analog environments. A built-in color camera portrays high-resolution videos as well as tilt and angle adjustment to entryways. A hands-free speaker provides intelligible audio quality to the user initiating the call as well as features a speaker and microphone volume control. A Blue LED light shows the opposite party he calls status and allows for the button to be easily located.

Intelligent call party control allows users to easily install this device anywhere as it includes automatic hang-up, Mount flush with any 2.25” inch single-gang electrical box or surface mount it to the optional VE-3x5 box. This door phone connects to an analog PBAX station port with programmable call party control. Always know who is at your door, gate, or other entrance with the Viking E-50-BK compact entry phone.

© 2022 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Viking E-50-BK Speakerphone Quick Specs:

• Connectivity: analog
• Camera Power: via 12V adapter
• Image Sensor: 1/4" color CMOS
• Resolution: 640x480 @ 30 fps
• Sensitivity: 0.025 LUX (50 IRE)
• Lens: 2.1 mm
• Field of View: 80° horizontal, 60° vertical, 100° diagonal
• Phone Power: via telephone line
• Ring Voltage: min. 25V AC RMS
• CPC Disconnect: min. 300ms
• REN: 0.8A
• Speaker Volume: approx. 62db max. @ 1m
• Connections: 5x gel-filled butt connectors
• Faceplate Dimensions: 4.875" x 3.125" x 0.18"
• Phone Dimensions: 2.84" x 1.8" x 1.65"
• Operating Temperature: -30° to 150° F
• Mounting: flush mount (optional wall mount)

Viking Electronics E-50-BK Entry Phone Package Contents:

• Viking E-50-BK entry phone in black
• Circuit board mounting plate
• 1/4" thick foam faceplate gasket
• Faceplate
• 5x gel-filled butt connectors
• 2x 6-32 x 1.25" screws
• LED light pipe
• 12V DC adapter

Viking E-50 Series Documentation:

• Viking E-50 Series Product Manual
