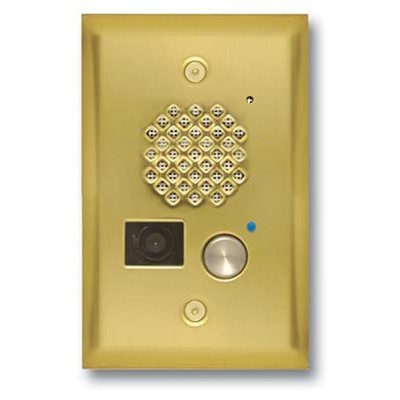

Viking E-50-PB-EWP Entry Phone with Camera in Brass

The Viking E-50-PB-EWP entry phone features enhanced weather protection. The phone is rated IP66, meaning it can withstand harsh environmental conditions like blowing wind and spraying water. The push button switch is rated IP67 with internal sealing, while the rest of the phone utilizes specialized gaskets and weather resistant coatings.

Communicate with guests outside your building or entry through the Viking E-50-PB-EWP phone two-way speaker. The built-in camera lets you view visitors and survey the surroundings. The cameras lens is scratch resistant to withstand abrasion or attempts at vandalism. Also on the phone interface is a blue LED so it can be easily found in the dark or in dimly lit conditions. The phone has a a polished brass color finish with clear gloss powder paint.

Viking E-50-PB-EWP Speakerphone Quick Specs:

• Connectivity: analog
• Camera Power: via 12V adapter
• Image Sensor: 1/4" color CMOS
• Resolution: 640x480 @ 30 fps
• Sensitivity: 0.025 LUX (50 IRE)
• Lens: 2.1 mm
• Field of View: 80° horizontal, 60° vertical, 100° diagonal
• Phone Power: via telephone line
• Ring Voltage: min. 25V AC RMS
• CPC Disconnect: min. 300ms
• REN: 0.8A
• Speaker Volume: approx. 62db max. @ 1m
• Connections: 5x gel-filled butt connectors
• Faceplate Dimensions: 4.875" x 3.125" x 0.18"
• Phone Dimensions: 2.84" x 1.8" x 1.65"
• Operating Temperature: -30"° to 150"° F
• Mounting: flush mount (optional wall mount)

Viking Electronics E-50-PB-EWP Entry Phone Package Contents:

• Viking E-50-PB-EWP entry phone in brass
• Circuit board mounting plate
• 1/4" thick foam faceplate gasket
• Faceplate
• 5x gel-filled butt connectors
• 2x 6-32 x 1.25" screws
• LED light pipe
• 12V DC adapter

Viking E-50 Series Documentation:

• Viking E-50 Series Product Manual
