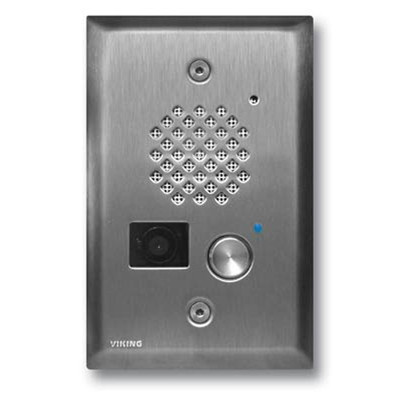

Viking E-50-SS-EWP Entry Phone with Camera in Stainless Steel

The Viking E-50-SS-EWP phone features enhanced weather protection. For outdoors entries, this phone provides reliable two-way communications, plus a built-in camera so you can view who you're talking to from the safety of your office or remote location. Sealed connectors and a UV-stable coating resist precipitation, condensation and sunlight to give the phone IP66-rated operation. The phone also offers vandal resistance through scratch-proof surfaces and a damage-resistant construction.

Intelligent call progress detection tells the Viking E-50-SS-EWP phone when to hang-up based on call time out, busy signal or other programmable conditions. You can also adjust the speaker and microphone volumes. Flush mount this compact phone in a single gang electrical box, or surface mount it in the compatible, optional VE-3x5 box.

Viking E-50-SS-EWP Speakerphone Quick Specs:

• Connectivity: analog
• Camera Power: via 12V adapter
• Image Sensor: 1/4" color CMOS
• Resolution: 640x480 @ 30 fps
• Sensitivity: 0.025 LUX (50 IRE)
• Lens: 2.1 mm
• Field of View: 80° horizontal, 60° vertical, 100° diagonal
• Phone Power: via telephone line
• Ring Voltage: min. 25V AC RMS
• CPC Disconnect: min. 300ms
• REN: 0.8A
• Speaker Volume: approx. 62db max. @ 1m
• Connections: 5x gel-filled butt connectors
• Faceplate Dimensions: 4.875" x 3.125" x 0.18"
• Phone Dimensions: 2.84" x 1.8" x 1.65"
• Operating Temperature: -30° to 150° F
• Mounting: flush mount (optional wall mount)

Viking Electronics E-50-SS-EWP Entry Phone Package Contents:

• Viking E-50-WH-SS entry phone in stainless steel
• Circuit board mounting plate
• 1/4" thick foam faceplate gasket
• Faceplate
• 5x gel-filled butt connectors
• 2x 6-32 x 1.25" screws
• LED light pipe
• 12V DC adapter

Viking E-50 Series Documentation:

• Viking E-50 Series Product Manual
