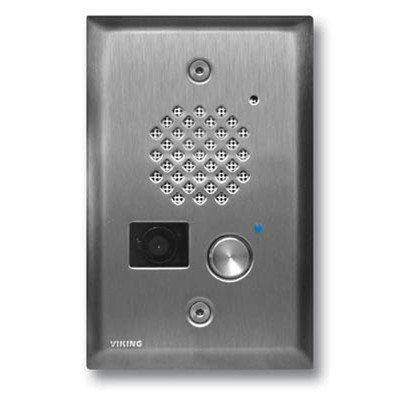

Viking E-50-SS Entry Phone with Camera in Stainless Steel

Mount the Viking Electronics E-50-SS phone outside of your entry, and provide a secure means of communicating with guests and visitors. The phone can be flush mounted, or surface mounted with the compatible VE-3x5 box. The phone compact size lets you mount it in a single gang electrical box. A blue LED light makes it easy to find the phone in the dark, and the light can also indicate ringing or off-hook.

The Viking E-50-SS features a built-in speakerphone and color camera. Control the phone microphone and speaker volumes, and view guests and visitors through the secure color camera. The phone also features programmable intelligent call progress detection to automatically hang-up.

Viking E-50-SS Speakerphone Quick Specs:

• Connectivity: analog
• Camera Power: via 12V adapter
• Image Sensor: 1/4" color CMOS
• Resolution: 640x480 @ 30 fps
• Sensitivity: 0.025 LUX (50 IRE)
• Lens: 2.1 mm
• Field of View: 80° horizontal, 60° vertical, 100° diagonal
• Phone Power: via telephone line
• Ring Voltage: min. 25V AC RMS
• CPC Disconnect: min. 300ms
• REN: 0.8A
• Speaker Volume: approx. 62db max. @ 1m
• Connections: 5x gel-filled butt connectors
• Faceplate Dimensions: 4.875" x 3.125" x 0.18"
• Phone Dimensions: 2.84" x 1.8" x 1.65"
• Operating Temperature: -30° to 150° F
• Mounting: flush mount (optional wall mount)

Viking Electronics E-50-SS Entry Phone Package Contents:

• Viking E-50-SS entry phone in stainless steel
• Circuit board mounting plate
• 1/4" thick foam faceplate gasket
• Faceplate
• 5x gel-filled butt connectors
• 2x 6-32 x 1.25" screws
• LED light pipe
• 12V DC adapter

Viking E-50 Series Documentation:

• Viking E-50 Series Product Manual
