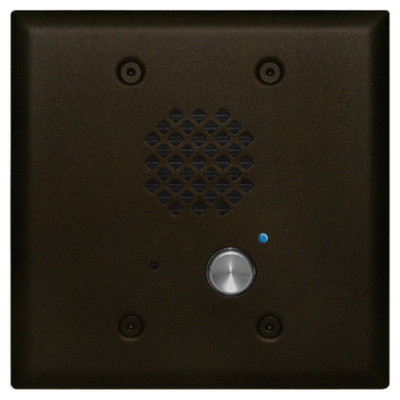

Viking E-60-BN-EWP Double Gang Entry Phone in Bronze

The Viking E-60-BN-EWP features enhanced weather protection, shielding the phone from precipitation and condensation. The oil rubbed bronze finish is protected from UV exposure with a weather-resistant powder coating. Flush mount the phone outdoors in a double gang electrical box approximately 2.25" D x 3.65" W x 2.84" H. Surface mount the phone in the optional VE-5x5 box.

Intelligent call progress detection enables the Viking E-60-BN-EWP phone to hang up on CPC, silence, busy signal or time out. The phones microphone and speaker volume can also be adjusted. A blue LED light next to the push button lets guests and visitors quickly find the phone in the dark, such as at night or in dimly lit hallways.

Viking E-60-BN-EWP Speakerphone Quick Specs:

• Power: via telephone line
• Dimensions:
• Faceplate: 4.875 x 4.938 x 0.17
• Phone: 2.84 x 1.8 x 1.65
• Operating Conditions: IP66, -30° to 150° F
• Speaker Volume: approx. 62db max. @ 3ft
• Ring Voltage: 25V AC RMS min.
• CPC Disconnect: 300ms min. time
• REN: 0.8A
• Connections: 2x gel-filled butt connectors

Viking Electronics E-60-BN-EWP Door Phone Package Contents:

• Viking E-60-BN phone with EWP
• Faceplate in oil rubbed bronze
• LED light pipe
• 4x 6-32 x 1.25" long 5/64" hex drive flathead screws
• 1/4"-thick foam faceplate gasket
• Circuit board mounting plate
• 2x gel-filled butt connectors
• 2x junction box to double gang adapter plates
• 4x 5/64 hex drive flathead screws

Viking E-60 Series Documentation:

• Viking E-60 Series Product Manual
