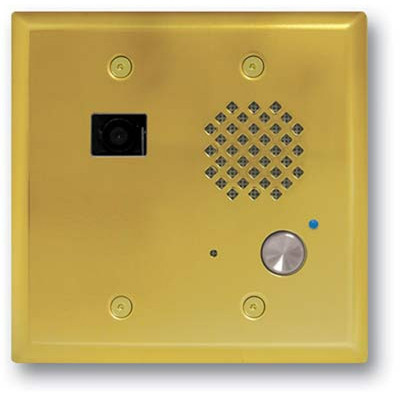

Viking E-65-PB Video Door Phone in Brass

The Viking E-65-PB door phone includes a speakerphone and color video camera. Mount this phone at your entry to provide two-way communications with guests and visitors, and view them through the built-in camera. A blue LED lets anyone quickly locate the phone and indicate call status. The phone features a polished brass finish to match your existing decor.

Control the volume levels of the phone microphone and speaker. Also program call progress detection settings for CPC disconnect, silence, the busy signal or time out. The Viking E-65-PB makes it easy to communicate with your building visitors on your terms. Connect it to an analog station port and mount it in a standard double gang box. Surface mounting can be achieved through the optional VE-5x5 box.

Viking E-65-PB Door Phone Quick Specs:

• Connectivity: analog
• Power: via telephone line
• CPC Disconnect: 300ms minimum
• Volume: max. 62db @ 1m
• Camera: 1/4 CMOS image sensor
• Video Resolution: 640x480 @ 30 fps
• Lens: 2.1mm
• Field of View: 80° horizontal, 60° vertical
• Operating Conditions: -30° to 150° F
• Dimensions: 2.84 x 1.8 x 1.65 (phone)
• 4.875 x 4.938 x 0.17 (faceplate)
• Mounting: flush in double gang box

Viking Electronics E-65-PB Door Intercom Package Contents:

• Viking E-65-PB door phone
• Faceplate in polished brass
• 5x 3-wire gel-filled butt connectors
• Circuit board mounting plate
• 1/4 thick foam faceplate gasket
• 2x double gang adapter plates
• LED light pipe

Viking E-65 Series Documentation:

• Viking E-65 Series Product Manual
