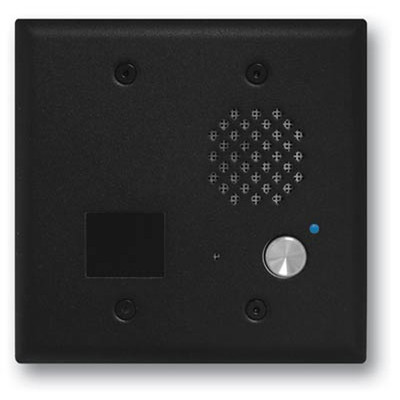

Viking E-70-BK-EWP Card Reader Door Phone in Black

The Viking E-70-BK-EWP phone features a built-in intercom and card reader, plus enhanced weather protection. Install the phone in a double gang electrical box, or the optional VE-5x5 box. Mount the phone outdoors to allow two-way communications with guests and provide keyless entry through the card reader. Connect the phone to a compatible door controller.

Intelligent call progress detection enables the phone to hang up through calling party control and line connectivity status. The card reader is compatible with standards like 26-bit Wiegand data output. The phone is designed for business, commercial and any other environment requiring a reliable entry solution. Also compatible with the optional VE-GNP gooseneck pedestal.

Viking E-70-BK-EWP Door Phone Quick Specs:

• Connectivity: analog
• Power: via telephone line or DC
• Wiring: gel-filled butt connectors
• CPC Disconnect: 300ms minimum
• Volume: max. 62db @ 1m
• Card Reader: built-in
• Data Format: 26-bit Wiegand
• Frequency: 125KHz
• Read Range: 1.25 to 2.0
• Operating Conditions: IP66 rated, -30° to 150° F
• Dimensions: 2.84 x 1.8 x 1.65 (phone)
• 4.875 x 4.938 x 0.17 (faceplate)
• Mounting: flush in double gang box

Viking Electronics E-70-BK-EWP Door Intercom Package Contents:

• Viking E-70-BK-EWP door phone
• Faceplate in black
• LED light pipe
• 4x hexdrive flathead screws
• 1/4 foam faceplate gasket
• Circuit board mounting plate
• 2x double gang adapter plates

Viking E-70 Series Documentation:

• Viking E-70 Series Product Manual
