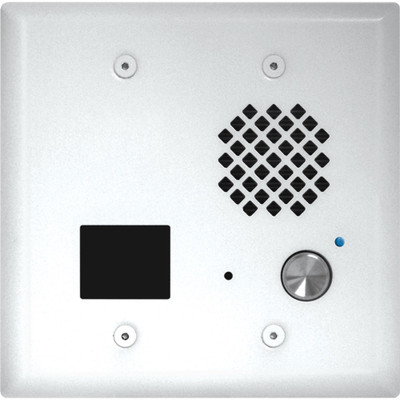

Viking E-70-WH Card Reader Door Phone in White

The Viking E-70-WH door phone has a built-in card reader. Connect the phone to a 26-bit Wiegand compliant door controller or door control device, and the card reader can provide keyless entry when a card is within proximity of the sensor. For guests and visitors, the built-in intercom provides two-way communications. Programmable intelligent call progress detection lets the phone hang-up when certain conditions are met.

Flush mount the phone in a double gang electrical box, or surface mount it in the optional VE-5x5 box. The interchangeable faceplateâ satin white finish is designed to match your existing structures and fixtures. Additional features onboard the phone include auto answer and adjustable volume levels. The Viking E-70-WH provides security and peace of mind.

Viking E-70-WH Door Phone Quick Specs:

• Connectivity: analog
• Power: via telephone line or DC
• CPC Disconnect: 300ms minimum
• Volume: max. 62db @ 1m
• Card Reader: built-in
• Data Format: 26-bit Wiegand
• Frequency: 125KHz
• Read Range: 1.25 to 2.0
• Operating Conditions: -30° to 150° F
• Dimensions: 2.84 x 1.8 x 1.65 (phone)
• 4.875 x 4.938 x 0.17 (faceplate)
• Mounting: flush in double gang box

Viking Electronics E-70-WH Door Intercom Package Contents:

• Viking E-70-WH door phone
• Faceplate in white
• LED light pipe
• 4x hexdrive flathead screws
• 1/4 foam faceplate gasket
• Circuit board mounting plate
• 2x double gang adapter plates
• Gel-filled butt connectors

Viking E-70-WH Documentation:

• Viking E-70-WH Product Manual
