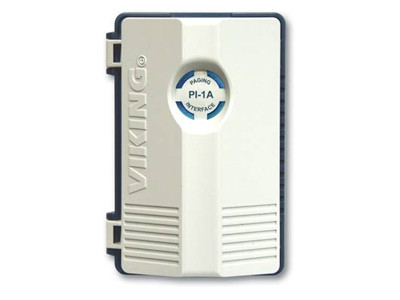

Viking PI-1A Telecom Paging Interface

Viking PI-1A telecom paging interface enables almost any phone system to facilitate universal paging without a microphone accessory. Instead of paging through a microphone, the PI-1A enables the page to come directly from the phone's handset or speakerphone helping users page in a more streamlined manner. Integrate background music seamlessly as the built-in VOX relay mutes background noise during pages automatically.

The PI-1A includes a selectable 22V DC talk battery ideal for use where paging ports are not available, but a line or trunk port can be leveraged. The cost-effective PI-1A interface has an adjustable ring pitch and volume and which can be differentiated between separate lines allowing for enhanced customization in deployments. Use the PI-1A telecom paging interface from Viking to provide increased public address functionality with nearly any phone system.

© 2022 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Viking PI-1A Telecom Paging Interface Quick Specs:

• Output: 600 ohm
• VOX Time Out Delay: 0.9 to 4.3 seconds
• Terminal Pins: audio I/O, relay contacts, line in, night ring, ground, positive 12V
• Relay Contacts: 30V DC@1A, 110V DC@0.3A, 125V AC@0.5A
• Max. Ring Output: 0.4V AC RMS @ 600 ohms
• Dimensions: 4.38" x 2.97" x 1.38"

Viking PI-1A Telephone Paging Interface Package Contents:

• Viking PI-1A interface
• AC adapter
• #6x3/4 panhead screws (2)

Viking PI-1A Documentation:

• Viking PI-1A Product Manual
