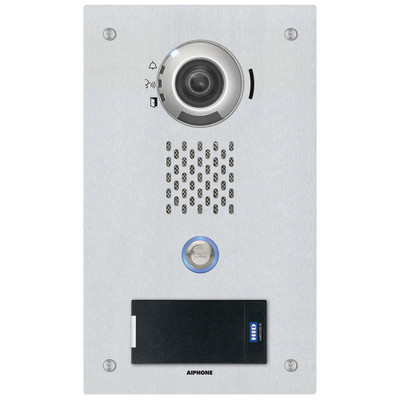

Aiphone IX-DVF Vandal-Resistant Flush-Mounted 1 Button Video IP Door Phone

Aiphone IX-DVF is an outdoor IP door phone with one button and a built-in camera. Designed to be vandal-resistant, IX-DVF has a 1.23 MP camera for improving door entry security. You can store video in device using a microSD card or stream it through the network. Adjust the camera angle vertically to better capture faces. IX-DVF has one call button that you can program to call an extension. There additional trigger inputs for actions like answering calls, as well as two contact outputs for opening door strikes and similar functions.

Aiphone IX-DVF runs SIP and integrates with Cisco Unified Call Manager. The faceplate is made out of stainless steel. IX-DVF is designed to be flush-mounted. It is IK07 rated against impacts and IP65 rated against the elements, and has an extended operating temperature range of -40°F to 140°F. It comes with four security screws to prevent tampering. It is ONVIF Profile S compliant. Power the door phone using PoE.

Aiphone IX-DVF IP Doorphone Quick Specs:

• Communications Protocol: SIP
• Ethernet Port: 1x 10/100
• PoE: 802.3af, 802.3at Type 2 PoE+
• Additional Interfaces:
• 2 contact outputs
• 6 trigger inputs
• microSD card slot
• Camera: 1/3" CMOS 1.23 MP
• Vertical Adjustment: +15°, 0°, -8°
• Video Codecs: H.264/AVC, Motion JPEG
• Audio Codecs: G.711μ/a, G.722
• ONVIF: Profile S
• Operating Temperature: -40°F - 140°F
• Durability Ratings: IP65, IK07

Aiphone IX-DVF Video SIP Door Phone Package Contents:

• Aiphone IX-DVF door phone
• Back box
• 2x ferrite cores
• Special screws and screwdriver
• Option connectors
• Installation manual
