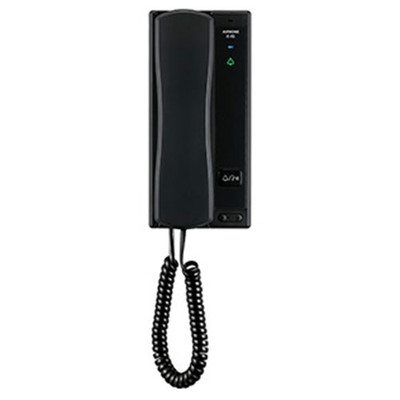

Aiphone IX-RS-W IP Sub Station, White

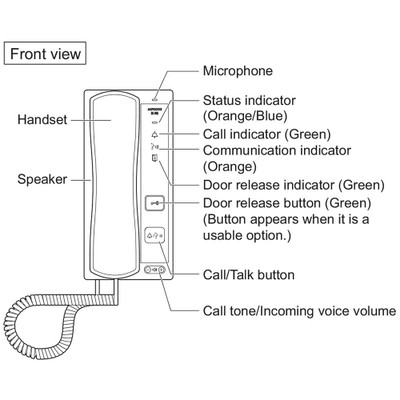

Aiphone IX-RS-W is a sub station for your Aiphone IP intercom system. IX-RS-W provides a reliable, simple to use communicator that's part of a network-enabled intercom or paging system. Program IX-RS-W to call up to 20 other stations. IX-RS-W has feature indicators with different color lights to make the phone easier to use, even in darkness. It has dedicated buttons for activating door releases and calling programmed extensions.

Aiphone IX-RS-W can also be used for paging. It has an 8-Ohm 2-Watt output for connecting an external speaker. The contact output lets IX-RS-W trigger contacts to open doors or gates. The contact input can trigger a call or answer a page. IX-RS-W is PoE compliant, so you can power it using the same Ethernet cable that connects it to the network.

Aiphone IX-RS-W IP Sub Station Quick Specs:

• Connectivity: IP/VoIP
• Communications Protocol: SIP
• Ethernet Port: 1x 10/100
• PoE: 802.3af Class 0
• Additional Interfaces: 1 contact output, 1 trigger input
• Audio Codecs: G.711μ/a, G.722
• Audio Output: 8-Ohm, 2-Watt (for secondary speaker connection)

Aiphone IX-RS-W SIP Sub Station Package Contents:

• Aiphone IX-RS-W IP sub station in white
• Mounting bracket and hardware
• Option connector
• Installation manual
