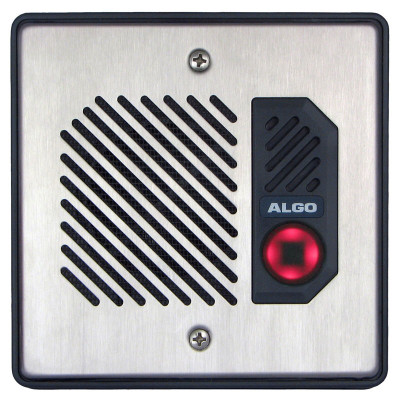

Algo 8028V Vandal-Resistant SIP Door Phone

Algo 8028V gives you a vandal-proof option for installing a full-duplex SIP intercom system. 8028V is a kit, coming with a door station, vandal-resistant faceplate, power supply, and doorphone controller. Algo's IP door phone uses the open SIP communication protocol to send intercoms through your IP network. You get the advantage of connecting your intercom to the VoIP system, while retaining the elite security of Algo's widely used door stations.

The Algo 8028V door station itself connects to the controller via a cable, which can be up to 1,000 ft long between the two, making it ideal for running to a secure gate. With numerous selectable options for inputs and outputs, Algo 8028V will fit your intercom needs, whether that's for a lobby, front gate, warehouse, secure yard, or wherever you need secure point-to-point communication. It can be either flush or surface mounted.

Algo 8028V Door Phone Quick Specs:

• Networking Protocol: SIP
• Ethernet Port: R4J5
• Audio Codec: G.711
• Full-Duplex: yes
• Connections:
  • Door Station: 6 position terminal strip
  • Controller: 5 position terminal strip
• Auxiliary Outputs:
  • Door Station: in-use, ring, button pressed, gate control, door alarm, follow controller input
  • Controller: in-use, ring, button pressed, door open, door alarm, follow intercom input
• Auxiliary Inputs:
  • Door Station: door contact, external call button
  • Controller: door contact, door unlock, door disable
• Temperature: -22°F - 140°C (door station)

Algo 8028V Vandal-Resistant SIP Door Phone Package Contents:

• Algo 8028 Door Phone
• Power Supply
• Vandal-Resistant Faceplate
• 2m (6ft) Ethernet Cable

Algo 8028V SIP Door Phone Documentation:

• Algo 8028V Datasheet
• Algo 8028 Installation and Configuration Guide
• Algo Door Strike Wiring Guide
• Algo SIP Endpoint Provisioning Guide
• Algo SIP Endpoint Registration Guide
