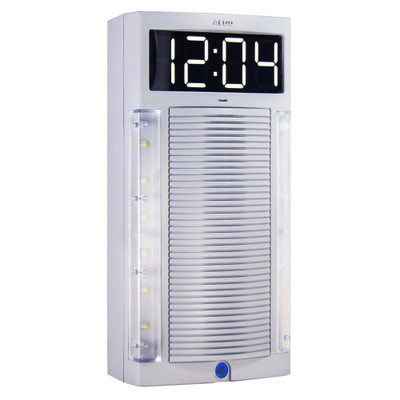

Algo 8190 SIP Classroom Paging Speaker & Digital Clock

Algo 8190 is a network-connected speaker with integrated digital clock for use in classrooms, lunchrooms, terminals, manufacturing floors, hospitals, and similar locations. Designed for indoor installation, 8190 uses a four-speaker array with asymmetric sound dispersion, which means better audio coverage. The speaker supports wideband audio to increase comprehension. 8190 has an integrated digital clock with clear white 2.25" LEDs to be easily visible. The speaker features a built-in omnidirectional microphone to monitor ambient noise. You can also configure the microphone to enable talkback.

Algo 8190 supports the open SIP protocol and is compatible with numerous VoIP systems. Manage the speaker using the web-based user interface. You can configure multiple extensions on the speaker for different scenarios: standard paging, emergency alert, ring tones. Because the clock is network-connected, it is automatically kept in time using NTP. 8190 can be used with multicast, including RTP and InformaCast systems. The speaker is self-amplified and can be powered via PoE. Algo includes a secure wall mount bracket.

Algo 8190 Paging Speaker Quick Specs:

• Connectivity Type: IP/VoIP
• Communications Protocol: SIP
• Ethernet Port: 10/100
• PoE: 802.3af/at
• Additional Interfaces:
• ADC Input
• Relay Output
• Door Control
• 24V Output
• Clock: 2.25" white LEDs
• Speaker: 4-element wideband array
• Speaker Pressure Level: 98dB @ 1m
• Microphone: omnidirectional
• Audio Codecs: G.711u/a, G.722

Algo 8190 SIP Classroom Speaker Package Contents:

• Algo 8190 Speaker
• Wall Mount Bracket

Algo 8190 Documentation:

• Algo 8190 Series Datasheet
• Algo 8190 Installation and Configuration Guide
• Algo SIP Endpoint Provisioning Guide
• Algo SIP Endpoint Registration Guide
