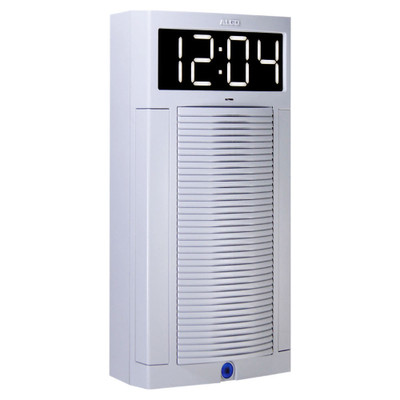

Algo 8190S SIP Classroom Paging Speaker, Digital Clock & Strobe Light

Algo 8190S is a network-connected speaker with integrated digital clock and multi-color strobe lights. The paging speaker is designed for indoor installation in classrooms, lunchrooms, terminals, manufacturing floors, hospitals, and similar locations. It uses a four-speaker array with asymmetric sound dispersion to provide excellent audio coverage. 8190S supports wideband audio, which provides more natural sound and increases comprehension. 8190S features an integrated digital clock with clear white 2.25" LEDs. On the sides of the speaker are two strips of LEDs that can be set to white, amber, blue, green, or red. You can configure both the colors and flash patterns to suit different situations. The speaker also has a built-in omnidirectional microphone to monitor ambient noise levels or talkback.

Algo 8190S is an IP paging speaker that supports the open SIP protocol, making it compatible with an enormous range of VoIP systems. Manage the speaker using the web-based user interface. Cover different scenarios by setting multiple extensions: standard paging, emergency alert, ring tones. Because the clock is set through the network, it is kept in time using NTP. 8190 can be used with multicast, including RTP and InformaCast systems. The speaker is self-amplified and can be powered via PoE. Algo includes a secure wall mount bracket.

Algo 8190S Paging Speaker Quick Specs:

• Connectivity Type: IP/VoIP
• Communications Protocol: SIP
• Ethernet Port: 10/100
• PoE: 802.3af/at
• Additional Interfaces:
• ADC Input
• Relay Output
• Door Control
• 24V Output
• Clock: 2.25" white LEDs
• Speaker: 4-element wideband array
• Speaker Pressure Level: 98dB @ 1m
• Microphone: omnidirectional
• Audio Codecs: G.711u/a, G.722

Algo 8190S SIP Classroom Speaker Package Contents:

• Algo 8190S Speaker
• Wall Mount Bracket

Algo 8190S Documentation:

• Algo 8190 Series Datasheet
• Algo 8190S Installation and Configuration Guide
• Algo SIP Endpoint Provisioning Guide
• Algo SIP Endpoint Registration Guide
