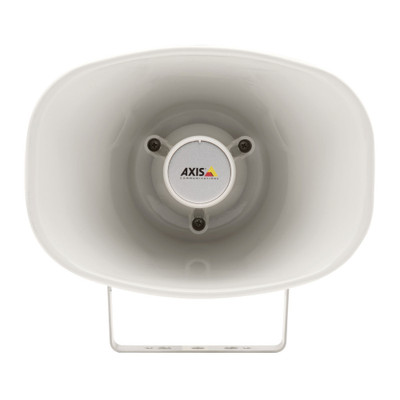

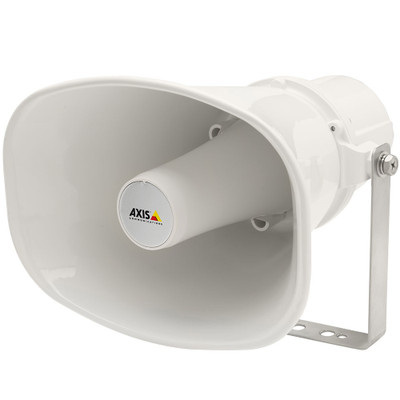

Axis C1310-E IP Horn Speaker - 01796-001

Axis C1310-E is a self-amplified IP paging speaker for projecting audio over large spaces like arenas, stadiums, or warehouses. Designed for outdoor installation, the rugged speaker has a directional horn shape with a 70° horizontal by 100° vertical coverage pattern. The directional design combines with the onboard 7W Class D amplifier to power loud broadcasting — maximum sound pressure level of 121 dB. The speaker has a preconfigured Digital Signal Processor (DSP) to reduce distortion and clarify audio — understand every word. Broadcast prerecorded notifications or alerts using the built-in memory. Or broadcast live audio.

Axis C1310-E is a network-connected speaker that supports the open SIP protocol — broad interoperability. The speaker integrates with video management software (VMS) platforms like Axis Camera Station, VoIP phone systems, and analytics services. Connect peripherals using the dual I/O terminal block. Test the health of the speaker remotely using the built-in microphone. Power C1310-E using PoE — simplified infrastructure. The rugged impact-resistant aluminum casing ensures long-lasting durability — MIL-STD-810G 509.5 rated against salt fog and more. It has an extended operating temperature range of -40°F to 140°F — works in almost any environment.

Axis C1310-E Quick Specs:

• Communications Protocol: SIP
• Connectors:
• Ethernet: 10/100 PoE
• I/O: 4-pin 2.5 mm terminal block for 1 input and 1 output
• PoE: 802.3af/at Type 1 Class 3
• Sound Pressure Level: up to 121 dB
• Coverage Pattern:
• Horizontal: 70°
• Vertical: 100°
• Amplifier: built-in 7W Class D amplifier
• Microphone: built-in
• Audio Streaming: one-way, two-way (mono)
• Audio Codecs: AAC LC, G.711, G.726, WAV, MP3
• Operating Temperature: -40°F to 140°F
• Durability Standards: IP66, IP67, NEMA 4X, MIL-STD-810G 509.5
• Dimensions (without bracket):
• Height: 6.5 in
• Width: 8.88 in
• Depth: 9.88 in
• Weight: 2.9 lb

Axis C1310-E Network Horn Speaker Package Contents:

• Axis C1310-E Horn Speaker
• Installation Guide
• AVHS Authentication Key
• Axis Camera Station License Key
• Axis Connector Guard A
• Cable Shoe
