Axis C1511 Network Pendant Speaker - 02390-001

Axis C1511 is a small, IP pendant speaker, perfect for providing exceptional audio in places with tall ceilings like airports, retail stores, open lobbies, and more. C1511 is a network-connected paging speaker that integrates with your video management software (VMS), VoIP phone system, and more. It features a 4-inch broadband dynamic cone for power and a construction that allows for a 130° wide-angle dispersion, as well as a 7 W Class D amplifier and preconfigured digital signal processor (DSP). In other words, a single speaker covers a large area with clear, strong sound, ideal for broadcasting live or prerecorded voice messages, background music, emergency alerts, and more.

C1511 is an IP paging speaker that connects to the network via a standard Ethernet cable. It can be powered via POE (Power Over Ethernet). This simple connectivity makes your installation streamlined, clean, and efficient. The speaker has a microphone built in. It can be used a as a talk-back (two-way) speaker, or the microphone can be disabled for a one-way speaker.

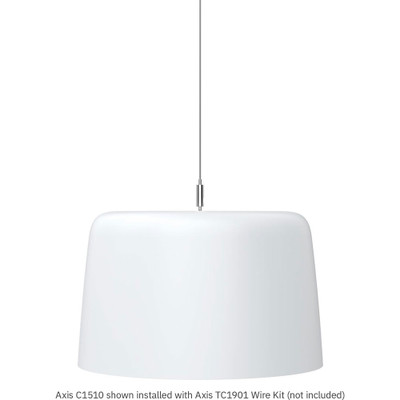

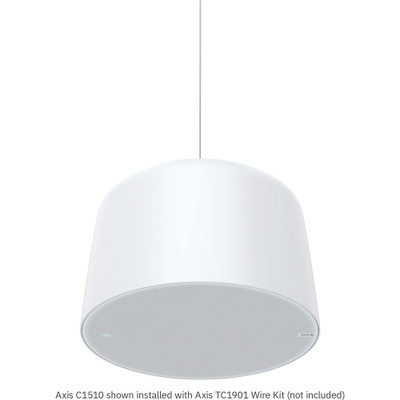

Note: Axis C1511 does not come with a wire for hanging the speaker. Axis recommends the Axis TC1901 Wire Kit (not included) for installation.

© 2023 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis C1511 Quick Specs:

• Connectivity Type: IP/VoIP
• Communications Protocol: SIP
• Speaker: 4 in broadband dynamic cone
• Amplifier: built-in 7 W Class D
• Audio: two-way (duplex), one-way (simplex)
• Microphone: built-in (can be disabled)
• Physical Connectors:
• Ethernet: 1x 10/100 RJ45 POE
• I/O: 4-pin 2.5 mm terminal block for 2x supervised configurable I/Os
• POE (Power Over Ethernet): 802.3 af Type 1 Class 3
• Edge Storage: microSD, microSDHC, microSDXC (up to 64 GB)
• Durability Standards: IP40
• Operating Temperature: -22°F to +122°F
• Dimensions:
• Height: 5.9 in
• Diameter: 8.7 in
• Weight: 5.8 lb

Axis C1511 Network Pendant Speaker Package Contents:

• C1511 Speaker

Axis C1511 Documentation:

• Axis C1511 Datasheet
• Axis C1511 Installation Guide
• Axis C1511 Repainting Instructions
