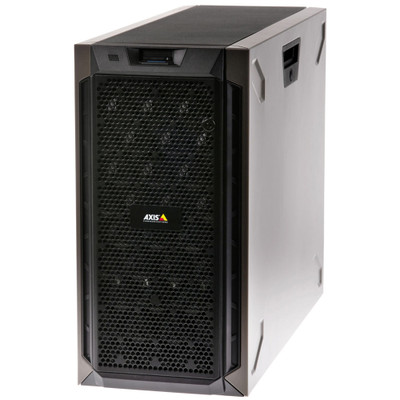

Axis Camera Station S1132 Tower Recorder 64 TB - 02080-004

Axis Camera Station S1132 is a network video server and client in tower form — professional video streaming and recording solution. Designed to be ready to go out of the box, S1132 comes with 32 Axis Camera Station licenses for 32 channels (upgradeable to a maximum of 48). It also has the software you need for operation already installed — simplified onboarding process. The computer has been optimized for Axis network devices and lets you take advantage of all the analytics and intelligent features that Axis offers.

This model of S1132 comes with 64 TB (8x 8 TB) of enterprise class HDD — extensive space for worry free HD recording over the long haul. To protect your video evidence via redundancy, the recorder supports RAID configurations — and two redundant power supplies.

Axis S1132 Tower Quick Specs:

  • CPU: Intel Core i3
  • Graphic Card: Nvidia Quadro
  • Memory: 16 GB (2x 8 GB)
  • Storage: 64 TB (8x 8 TB) hot swappable enterprise class HDD
  • RAID Levels: 0, 1, 5, 6, 10
  • Operating System: Microsoft Windows 10 IoT Enterprise SAC
  • Licenses: 32 Axis Camera Station licenses included (upgradeable to 48)
  • Video Streaming:
    • 1 stream x 4K @ 30 fps
    • 4 split x 1080p @ 30 fps
    • 9 split x 720p @ 15 fps
    • 24 split x 360p @ 15 fps
  • Video Recording: up to 48 channels @ recording rate of up to 384 Mbps
  • Physical Connector (Front Side): 1x USB 3.1
  • Physical Connectors (Rear Side):
    • 2x USB 3.1
    • 4x USB 2.0
    • 2x RJ45 Gigabit Ethernet
    • 3x Mini DisplayPort
  • Power: 2x 495W hot-plug redundant power supplies
  • Dimensions:
    • Height: 23.7 in
    • Width: 8.58 in
    • Depth: 16.94 in
  • Weight: 58.4 lb

Axis Camera Station S1132 Tower Recorder 64 TB Package Contents:

  • Axis Camera Station S1132 Recorder 64 TB
  • 2x C13 Wall Plug Power Cords
  • 2x Mini DisplayPort to DisplayPort Adapters
Warranty:
1 Year
