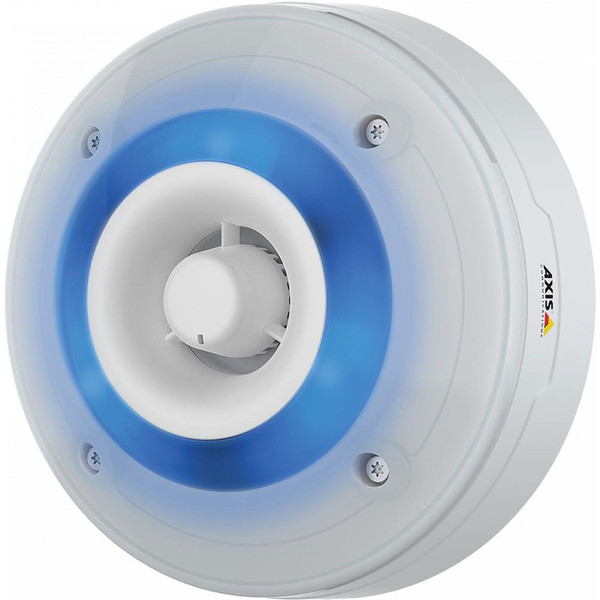

Axis D4100-E Network Strobe Siren - 01942-001

Axis D4100-E is a combination alarm and strobe light to provide both audible and visual notifications in a variety of situations. Designed for indoor or outdoor installation, D4100-E is a network-connected endpoint that integrates with your video management system (VMS), including Axis and third-party platforms. D4100-E offers multi-color light selection with LEDs: red, green, blue, or yellow. It also has bright white lights. As an alarm, you can set various sound clips to trigger.

A versatile solution, D4100-E can be connected via VAPIX, MQTT, or SIP. You can set profiles with different priority levels to suit different scenarios. You can even integrated with license plate recognition (LPR) cameras and more. D4100-E is IP66 and IK10 rated.

© 2024 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis D4100-E Quick Specs:

• Strobe Illumination: red, blue, green, amber (RGBA) LEDs; white LEDs
• Siren Coverage Pattern: 150° coaxial at 2 kHz
• Durability Ratings: IP66, IK10, NEMA 4X
• Physical Connectors:
• Ethernet: 10/100 RJ45 POE
• I/O: 4-pin 2.5 mm terminal block (2 configurable inputs and outputs)
• POE (Power Over Ethernet): 802.3at Type 2 Class 4
• Operating Temperature: -40°F to 140°F
• Physical Connectors:
• Height: 2.6 in
• Diameter: 6.7 in
• Weight: 2.2 lb

Axis D4100-E Network Strobe Siren Package Contents:

• D4100-E Strobe Siren
• Installation Guide
• Resistorx TR20 Bit
• Terminal Block Connector
• Cable Gaskets
• Connector Guard

Axis D4100-E Documentation:

• Axis D4100-E Datasheet
