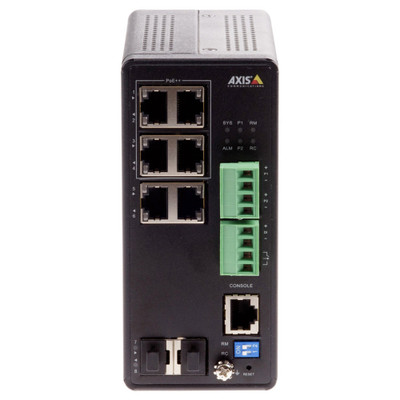

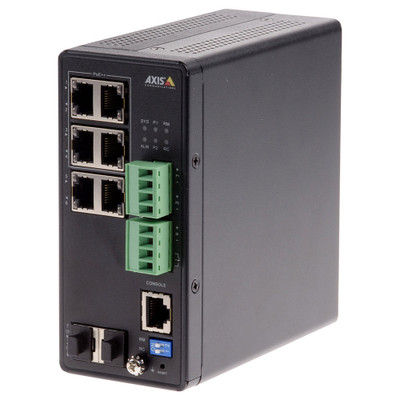

Axis D8208-R 8-Port Industrial POE++ Switch - 02621-001

Axis D8208-R is an industrial-grade 8-port managed POE network switch. Power connected network devices using this switch, which supports up to 90 W of power per port. It has a total POE power budget of 480W. Six of the RJ45 ports are Gigabit Ethernet plus two even faster 2.5 Gigabit Ethernet ports. Rapid Ring ensures high availability at all times. Manage it using the familiar, intuitive Axis UI, which includes features like graphic topology to simplify network management.

D8208-R is a ruggedized network switch. It was built to withstand shocks and vibrations, making it the perfect solution for network connectivity near highways, tunnels, railways, harbors, and similarly demanding locations. It also works wonderfully well for industrial and factory environments. For extra protection, mount it inside an Axis TQ1808-VE Surveillance Cabinet (not included). D8208-R is NEMA TS-2 compliant.

© 2023 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis D8208-R Quick Specs:

• POE Standards:
• Up to 15.4 W Output: 802.3 af Type 1 Class 3
• Up to 30 W Output: 802.3 at Type 2 Class 4
• Up to 60 W Output: 802.3 bt Type 3 Class 6
• Up to 90 W Output: 802.3 bt Type 4 Class 8
• Total Power Budget: 480 W
• Power Per Port: up to 90 W
• Ports:
• POE: 6x Gigabit RJ45, 2x 2.5 Gigabit RJ45
• Data/Uplink: 2x 10 Gigabit SFP+
• Console: 1x RJ45
• Power: 2x power connector ports
• Operating Temperature: -40°F to +140°F
• Dimensions:
• Height: 2.44 in
• Width: 6.61 in
• Depth: 5.11 in
• Weight: 1.967 lb

Axis D8208-R Industrial POE++ Switch Package Contents:

• D8208-R Switch
• Installation Guide
• Mounting Bracket for DIN Rail
• DB-9 Console Cable
• 2x Mounting Brackets for TQ1808-VE Surveillance Cabinet

Axis D8208-R Documentation:

• Axis D8208-R Datasheet
• Axis D8208-R Installation Guide
