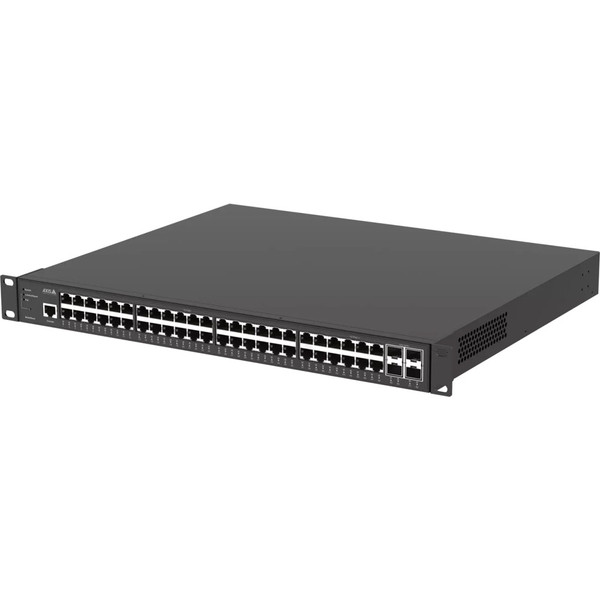

Axis D8248 48-Port Managed PoE++ Switch - 02620-004

Axis D8248 is a 48-port managed network switch with PoE++ power delivery capability. Use D8248 to connect and power IP security cameras and more — it's been optimized for IP surveillance applications. All the It has 8 ports that are capable of delivering up to 90 W of power, plus 40 that can deliver up to 30 W. With a total power budget of 740 W, the PoE switch can drive even sizable installations all by itself. As a network switch, it has a 176 Gbps switching capacity and all PoE ports offer Gigabit Ethernet speed, so network bottlenecking won't be a problem.

On top of its 48 Gigabit Ethernet ports, D8248 has four 10 Gigabit SFP+ data/uplink ports for ultra-high-speed traffic over extended distances. Its user interface makes configuration and management simple via an intuitive graphic topology. You can set up status notifications for all the cameras, reboot them, monitor traffic, and much more.

© 2025 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis D8248 Quick Specs:

• Switching Capacity: 176 Gbps
• PoE Output:
• Ports 1 to 40: 802.3at Type 2 Class 4 (max. 30 W output)
• Ports 41 to 48: 802.3bt Type 4 Class 8 (max. 90 W output)
• PoE Power Budget: 740 W
• Physical Connectors:
• PoE Ports: 48x Gigabit RJ45
• Data Ports/Uplink: 4x 10 Gigabit SFP+
• Console: 1x RJ45
• Power: 1x power connector port
• Surge Protection:
• Network Ports: 1 kV
• AC Lines: 2 kV

Axis D8248 Managed PoE++ Switch Package Contents:

• Switch
• Installation Guide
• 19-inch Ear Rack Kit
• 4x Rubber Feet
• Power Cord

Axis D8248 Documentation:

• Axis D8248 Datasheet
• Axis D8248 Installation Guide
