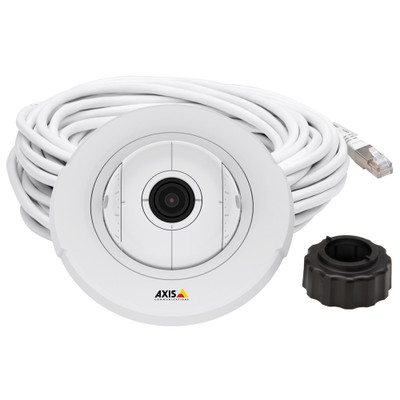

Axis F4105-LRE 1080p Mini-Dome Sensor Unit - 02364-001

Axis F4105-LRE is a mini-dome sensor unit for discreet surveillance outdoors, including at night using the on-board infrared lights. F4105-LRE connects to a 2nd generation Axis F Series main unit (not included) like Axis F9111 or F9114 to make a complete security camera. Depending on the main unit used, F4105-LRE gives up to 1080p Full HD video at 60 fps or up to 720p HD video at 180 fps. The sensor features a wide-angle lens with fast f/1.6 aperture for exceptional performance in general surveillance environments, even in low-light. The sensor has infrared lights with 33-foot range to take security video in no-light situations. F4105-LRE is a rugged mini-dome sensor unit with a clear polycarbonate dome, meeting durability standards up to IP6K9K.

F4105-LRE has a 3.93-inch cable attached, but requires another cable for connectivity. To connect the sensor with a main unit, you must use a 2nd generation Axis F Series cable, like Axis TU6004-E or Axis TU6005 (available separately). F4105-LRE uses an SMA-FAKRA connector, which makes it more resistant to vibrations, such as would be encountered in factories or alongside highways.

Note: Axis F4105-LRE is a 2nd generation Axis F Series sensor unit and must be used with 2nd generation cables and main units. F4105-LRE is not compatible with 1st generation cables and main units.

© 2023 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis F4105-LRE Quick Specs:

• Image Sensor: 1/2.8" (effective) progressive scan RGB CMOS
• Video Resolution:
• up to 1080p Full HD (1920 x 1080 px) @ 60 fps
• up to 720p HD (1280 x 720 px) @ 180 fps
• Lens: fixed 2.8 mm, f/1.6
• Field of View (for 1080p Full HD):
• Horizontal: 110°
• Vertical: 60°
• Field of View (for 720p HD):
• Horizontal: 70°
• Vertical: 39°
• Camera Angle Adjustment:
• Pan: +180° to -180°
• Tilt: +120°
• Rotate: +90° to -90°
• Minimum Illumination:
• Color: 0.3 lux
• Infrared: 0 lux
• Infrared Range: up to 33 ft
• Physical Connector: 1x SMA connector
• Operating Temperature: -22°F to +131°F (with IR off)
• Durability Ratings: IP66, IP67, IP6K9K, NEMA 4X
• Dimensions:
• Height: 2.14 in
• Diameter: 4.4 in
• Weight: 1.3 lb

Axis F4105-LRE Mini-Dome Sensor Package Contents:

• F4105-LRE Sensor Unit
• Installation Guide
• Lens Tool

Axis F4105-LRE Documentation:

• Axis F4105-LRE Datasheet
• Axis F4105-LRE Installation Guide
