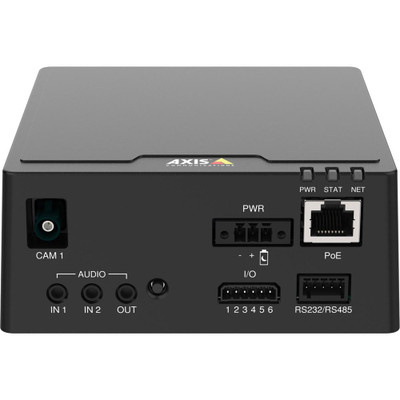

Axis F9111-R Mk II 1-Channel Main Unit - 02998-001

Axis F9111-R Mk II is an updated main unit for use with compatible Axis F Series sensor units. F9111-R Mk II is a 1-channel main unit that offers up to 4K Ultra HD resolution for exceptional detail on your security video, or for areas with rapidly moving objects it offers up to 180 fps video at 720p HD. In other words, this main unit works for pretty much any surveillance situation. It even has two 3.5 mm audio inputs for connecting external microphones, providing another layer of security.

Even better, F9111-R Mk II uses its purpose-built ARTPEC-8 System on a Chip with deep learning processing unit to provide AI-enhanced analytics. Axis Object Analytics comes pre-installed on the device, which is a suite of solutions for automatically detecting, classifying, tracking, and counting humans and vehicles. Axis Sensor Metrics Dashboard is also pre-installed, letting you collect vital data from GPS, accelerometer, or Modbus sensors, which it can store locally in the main unit on a microSD card. Axis Edge Vault is a hardware-based cybersecurity platform that protects F9111-R Mk II and the other devices on your system. F9111-R Mk II is built for the long-haul with a rugged aluminum casing that's shock and vibration resistant.

© 2025 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis F9111-R Mk II Quick Specs:

• System on a Chip: ARTPEC-8
• Video Compression: H.264 (AVC) Baseline, Main, High; H.265 (HEVC) Main; Motion JPEG
• Video Resolution: up to 4K Ultra HD (3840 x 2160 px)
• Frame Rate: up to 180 fps
• Audio Input: 2x inputs for external microphones
• Physical Connectors:
• Ethernet: Gigabit RJ45 PoE
• FAKRA: 1x for sensor unit
• I/O: 6-pin terminal block for 4x configurable I/Os
• Audio: 2x 3.5 mm mic/line in
• Serial: 2-pin terminal block RS485
• Power: 3-pin terminal block
• USB: 1x USB-A
• PoE (Power Over Ethernet): 802.3af/at Type 2 Class 4
• Durability Standard: IP3X

Axis F9111-R Mk II Main Unit Package Contents:

• Main Unit
• Installation Guide

Axis F9111-R Mk II Documentation:

• Axis F9111-R Mk II Datasheet
• Axis F9111-R Mk II Installation Guide
