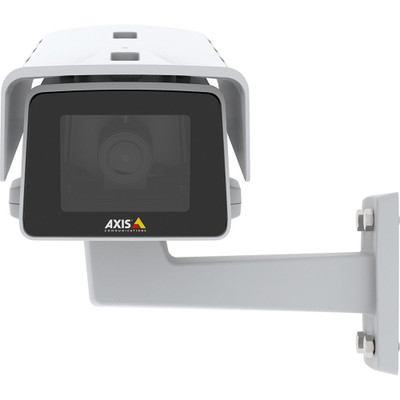

Axis M1135 Mk II 1080p Indoor Box IP Camera - 02483-001

Axis M1135 Mk II is an affordable compact box camera that can take up to 2 MP resolution at up to 30 fps. The M1135 Mk II features Axis Lightfinder – offering images in true colors even in low light, and Axis Forensic WDR – clarity even when there’s both dark and light areas in the scene. It includes a CS-mount with support for motorized i-CS lenses, enabling remote zoom – ideal for surveillance. Designed as a deterrent, it allows for everyone to see the camera, while potentially stopping unwanted activity. Having such a compact and flexible design and a fixed field of view, the M1135 Mk II can record audio and video in a precise area, making it an excellent security camera. With its built-in microphone, it allows for hearing sounds in that specific area.

M1135 Mk II has an Axis ARTPEC-7 chipset with machine learning processing unit, which enables advanced features. To distinctly detect humans and vehicles – it comes with Axis Object Analysis preinstalled. Includes Axis Zipstream with support for H.264/H.265 significantly reduces bandwidth and storage requirements. M1135 Mk II supports both PoE and DC power inputs.

© 2023 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis M1135 Mk II Quick Specs:

• System on a Chip (SoC): ARTPEC-7
• Image Sensor: 1/2.9" progressive scan RGB CMOS
• Video Resolution: 1920 x 1080 to 160 x 90 @ up to 25/30 fps
• Lens: Varifocal 3-10.5 mm (CS-mount)
• Field of View:
• Horizontal: 90° to 33°
• Vertical: 49° to 19°
• Minimum Illumination:
• Color: 0.15 lux
• B/W: 0.03 lux
• Audio: 2-way (simplex)
• Physical Connectors:
• Ethernet: 10/100 RJ45 PoE
• Audio: 3.5 mm mic/line in
• Terminal Block: one input and one output
• Power: DC input, terminal block
• Power Over Ethernet (PoE): 802.3 af/at Type 1 Class 3
• Video Compression: H.264 Baseline, Main, High; H.265 Main; Motion JPEG
• ONVIF: Profile G, Profile M, Profile S, Profile T
• Operating Temperature: -4°F to 122°F
• Dimensions:
• Height: 1.8 in
• Width: 2.8 in
• Length: 5.8 in
• Weight (with optics): 0.55 lb

Axis M1135 Mk II Network Security Camera Package Contents:

• M1135 Mk II Camera
• Axis T91A11 Stand White
• Windows® decoder 1-user license
• Installation Guide

Axis M1135 Mk II Documentation:

• Axis M1135 Mk II Datasheet
