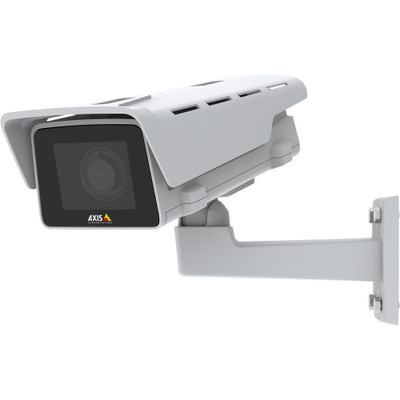

Axis M1137 Mk II 5 MP Indoor Box IP Camera - 02484-001

Axis M1137 Mk II is an affordable surveillance camera that takes up to 5 MP video — 2.5x better resolution than 1080p Full HD. Designed for indoor installation, M1137 Mk II is a compact box camera with a varifocal CS-mount lens — perfect for general surveillance. To improve video performance, M1137 Mk II supports a number of advanced technologies. Lightfinder means the camera accurately reproduces color in extreme low-light. Forensic WDR means it dynamically adapts to challenging lighting like harsh contrasts or strong backlighting. For an extra layer of security, M1137 Mk II comes with a built-in microphone — add sound to your video.

M1137 Mk II has a powerful Axis ARTPEC-7 chipset with machine learning processing unit, which enables advanced features. Axis Object Analytics comes preinstalled — automatic, highly accurate and nuanced categorization of objects like humans or vehicles. The camera supports both PoE and DC power inputs. You can use a redundant DC power source to ensure operation even in the event of power outage. Ultra-efficient H.265 (HEVC) video compression reduces bandwidth and storage load — save more video per the same amount of storage. Store video through the network using a NAS or NVR solution. Axis M1137 Mk II in ONVIF Profiles G, M, S and T compliant — interoperable with third-party solutions. You can switch out the lens for another compatible CS-mount lens — adaptable.

© 2022 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis M1137 Mk II Quick Specs:

• System on a Chip (SoC): ARTPEC-7
• Image Sensor: 1/2.7" progressive scan RGB CMOS
• Video Resolution: up to 5 MP (2592 x 1944 px) @ 30 fps
• Lens: varifocal 2.8-13 mm (CS-mount)
• Field of View:
• Horizontal: 112° to 24°
• Vertical: 82° to 19°
• Minimum Illumination:
• Color: 0.17 lux
• B/W: 0.03 lux
• Audio: 1-way (simplex)
• Physical Connectors:
• Ethernet: 10/100 RJ45 PoE
• Audio: 3.5 mm mic/line in
• Terminal Block: one input and one output
• Power: DC input, terminal block
• Power Over Ethernet (PoE): 802.3 af/at Type 1 Class 3
• Video Compression: H.264 Baseline, Main, High; H.265 Main; Motion JPEG
• ONVIF: Profile G, Profile M, Profile S, Profile T
• Operating Temperature: -4°F to 122°F
• Dimensions:
• Height: 2.5 in
• Width: 2.8 in
• Length: 7.0 in
• Weight (with optics): 0.55 lb

Axis M1137 Mk II Network Security Camera Package Contents:

• M1137 Mk II Camera
• T91A11 Stand White
• Installation Guide
• Windows Decoder 1-User License

Axis M1137 Mk II Documentation:

• Axis M1137 Mk II Datasheet
