Axis M3905-R 1080p Dome Mobile IP Camera - 02501-001

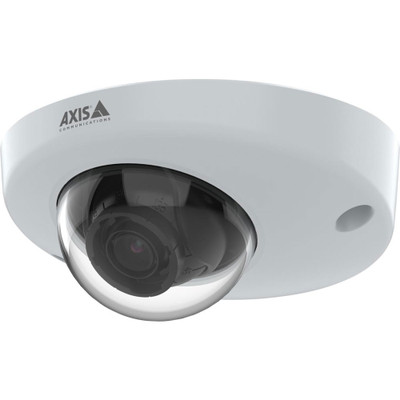

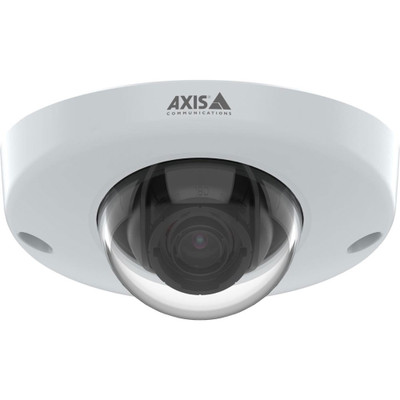

Axis M3905-R is an ultra-compact IP camera for installation in vehicles like buses, trains, and subways. M3905-R meets numerous transportation industry regulations, including for fire-safety on buses. This 1080p Full HD camera uses its wide-angle 3.6 mm lens with 88° horizontal field of view to provide clear, general coverage of constrained spaces like you find onboard vehicles. Axis further improves video quality with technologies like Lightfinder, which provides naturalistic color in extreme low-light, and Forensic WDR, which dynamically adapts to high-contrast lighting conditions like you’d find on a bus with sunlight coming in from the windows casting shadows.

M3905-R supports advanced modes to improve performance in everyday scenarios, including Traffic Light mode, which lets the camera distinguish the color of traffic lights in low-light situations. Zipstream makes the video feed much more efficient to reduce on storage requirements. You can store video in camera using a microSD card or through the network. M3905-R is a ruggedized network camera, which meets numerous durability standards, including IP66/67 and IK10. If you want to install M3905-R on the outside of a bus, use the optional Axis TP3826-E Housing (02672-001). M3905-R meets the ONVIF G, M, S, and T profiles.

M3905-R RJ45 (02501-001) has an RJ45 connector. If you want the same camera with an M12 connector, search for Axis M3905-R M12 (02502-001).

© 2024 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis M3905-R Quick Specs:

• System on a Chip (SOC): S6LM55
• Image Sensor: 1/2.9” progressive scan RGB CMOS
• Video Resolution: up to 1080p Full HD (1920 × 1080 px)
• Frame Rate: up to 30 fps
• Video Compression: H.264 (AVC) Main and High; H.265 (HEVC) Main; Motion JPEG
• Lens: fixed 3.6 mm, f/2.0
• Field of View:
• Horizontal: 88°
• Vertical: 47°
• Camera Angle Adjustment:
• Pan: ±30°
• Tilt: +15° to +90°
• Rotate: ±175°
• Minimum Illumination:
• Color: 0.04 lux
• Physical Connectors:
• Ethernet: 10/100 RJ45 POE
• Power Over Ethernet (POE): 802.3af/at Type 1 Class 1
• Edge Storage: microSD, microSDHC, microSDXC
• ONVIF Profiles: G, M, S, T
• Operating Temperature: -22°F to 131°F
• Durability Ratings: IP66/67, IK10, NEMA 4X
• Dimensions:
• Height: 1.97 in
• Diameter: 4.33 in
• Weight: 0.53 lb

Axis M3905-R Onboard Network Security Camera Package Contents:

• M3905-R Camera
• Installation Guide
• Windows Decoder 1-User License
• Lens Tool

Axis M3905-R Documentation:

• Axis M3905-R Datasheet
• Axis M3905-R Installation Guide
