Axis M4318-PLR 12 MP Panoramic IR Dome Mobile IP Camera - 02834-001

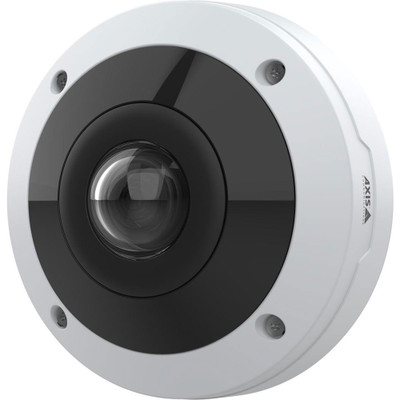

Axis M4318-PLR is a 12 MP panoramic IP camera for onboard installation on buses. M4318-PLR meets strict industry bus regulations. This ruggedized mini-dome surveillance camera offers 180° or 360° overview from a single camera that measures less than 6 inches in diameter. Because it uses a 12 MP sensor, you get exceptional detail. With its 1.2 mm fisheye lens that is delivered factory-focused and digital roll functionality, you have a simple, effective means of protection that you can adjust from a distance. Select from an expansive list of viewing modes to see the security video how you need to: overview, panorama, quad view, and more. Sharpdome technology greatly reduces distortion compared with the average dome camera. M4318-PLR even has built-in OptimizedIR infrared lights with nearly 50 foot reach for surveillance in no-light situations. To reduce reflections, you can control the infrared LEDs individually.

M4318-PLR is powered by the purpose-built ARTPEC-8 System on a Chip, which enables advanced features like the pre-installed Object Analytics. This time-saving solution automatically detects and classifies humans and vehicles, including types of vehicles, via AI-based algorithms. To protect your surveillance investment, Axis has built M4318-PLR with security from the start. It comes with Edge Vault, a hardware-based cybersecurity platform that protects both device and the IP camera system as a whole. Store video in camera using a microSD card or through the network. The polycarbonate, hard-coated dome casing gives it IP66 and IK10 ratings. M4318-PLR is compliant with ONVIF Profiles G, M, S, and T.

© 2024 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis M4318-PLR Quick Specs:

• System on a Chip (SOC): ARTPEC-8
• Image Sensor: 1/2.3” progressive scan RGB CMOS
• Video Resolution: up to 4K Ultra HD (3840 × 2160 px)
• Frame Rate: up to 30 fps
• Video Compression: H.264 (AVC) Baseline, Main and High; H.265 (HEVC) Main; Motion JPEG
• Lens: fixed 1.2 mm, f/2.2
• Field of View:
• Horizontal: 182°
• Vertical: 182°
• Camera Angle Adjustment:
• Digital Roll: ±180°
• Minimum Illumination:
• Color: 0.19 lux
• B/W: 0.04 lux
• Infrared: 0 lux
• Infrared Range: up to 49.2 ft
• Audio: via portcast technology
• Physical Connectors:
• Ethernet: 10/100 RJ45 POE
• I/O: terminal block for 1 supervised alarm input and 1 output
• Audio & I/O: via portcast technology
• Power Over Ethernet (POE): 802.3af/at Type 1 Class 3
• Edge Storage: microSD, microSDHC, microSDXC
• ONVIF Profiles: G, M, S, T
• Operating Temperature: -40°F to 122°F
• Durability Ratings: IP66, IK10, NEMA 4X
• Dimensions:
• Height: 2.7 in
• Diameter: 5.9 in
• Weight: 1.9 lb

Axis M4318-PLR Panoramic Onboard Network Security Camera Package Contents:

• M4318-PLR Camera
• Installation Guide
• Terminal Block Connector
• Connector Guard
• Cable Gaskets
• Cable Hole Lid
• Owner Authentication Key

Axis M4318-PLR Documentation:

• Axis M4318-PLR Datasheet
• Axis M43-PLR Series Installation Guide
