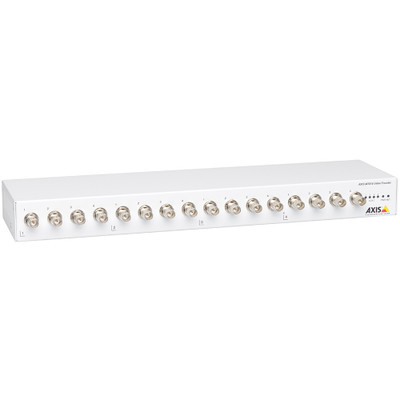

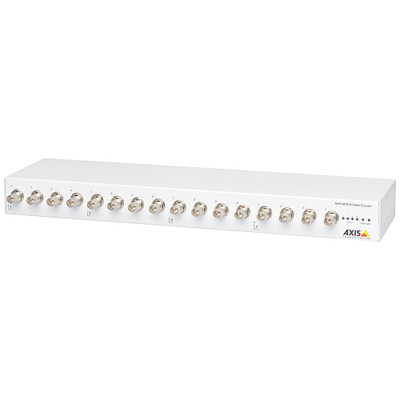

Axis M7116 16-Channel Video Encoder - 02036-004

Axis M7116 lets you integrate up to 16 analog CCTV security cameras into your IP camera system. M7116 gets you standard resolution at full frame rates — up to 30 fps for every channel. Additionally, you can enable PTZ control over RS485.

M7116 keeps the video streams efficient with Axis Zipstream plus H.265 video compression — greatly reduce storage and bandwidth load. Store video in the encoder using a microSD card or through the network using an NVR or NAS solution. Signed firmware and secure boot are just two of the safety features that protect your surveillance video.

© 2022 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis M7116 Quick Specs:

• Video Compression: H.264 Baseline, Main, High; H.265 Main; Motion JPEG
• Video Resolution: up to 720 x 576 px @ 30 fps
• Physical Connectors:
• Video Inputs: 16x analog video BNC inputs
• Ethernet: 1x Gigabit RJ45
• Terminal Block: 4 pcs terminal block for RS485/RS422 serial communication, 1 pc DC input
• Edge Storage: microSD, microSDHC, microSDXC
• ONVIF: Profile G, Profile S, Profile T
• Operating Temperature: 32°F to 122°F
• Dimensions:
• Height: 1.7 in
• Width: 17.3 in
• Depth: 5.7 in
• Weight: 4.5 lb

Axis M7116 Video Encoder Package Contents:

• M7116 Encoder
• Installation Guide
• Windows Decoder 1-User License
• DC Input Plug
• 8x 2-pin RS485/RS422 Plugs
• Mains Power Supply
• Mounting and Connector Kit

Axis M7116 Documentation:

• Axis M7116 Datasheet
• Axis M7116 Installation Guide
