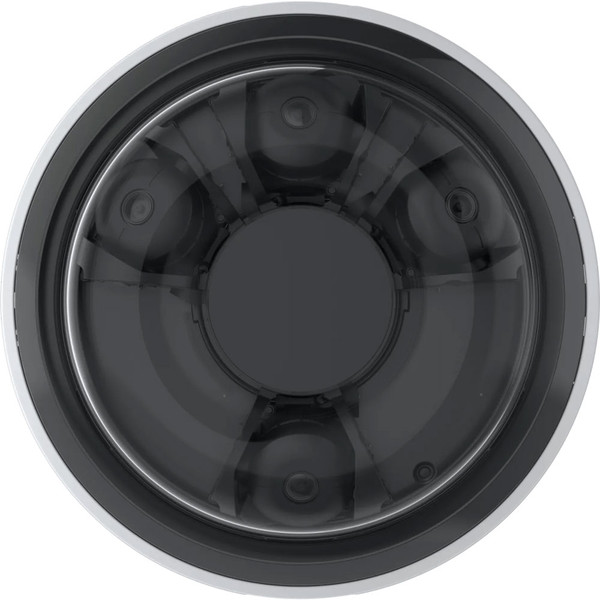

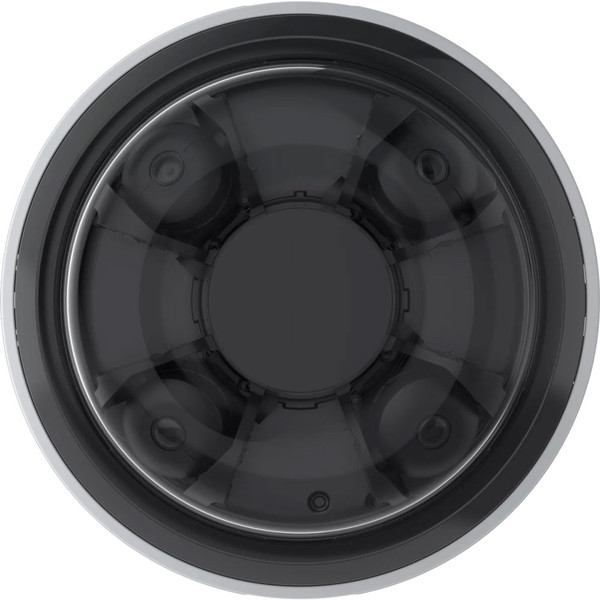

Axis P3747-PLVE 4x5 MP Multidirectional Panoramic IP Camera - 02897-001

Axis P3747-PLVE is a panoramic IP camera that uses four 5 MP cameras to provide 360° coverage from a single device, including 360° infrared illumination for no-light surveillance. Designed for indoor or outdoor installation, can be mounted on the ceiling for 360° coverage or at a corner for 270° coverage; Axis offers an array of optional pendant mounts, dome casings, and more to complete the installation. P3747-PLVE uses four cameras to produce video. Each camera has its own professional varifocal lens and 5 MP sensor. Remote pan, tilt, roll, and zoom features let you finetune the picture to get the shots you really need. For comprehensive wide-area surveillance, look to Axis P3747-PLVE.

As a professional security camera, P3747-PLVE supports and comes with advanced analytics features. Axis Object Analytics is a whole suite of AI-based analytical solutions that provide actionable insights for your team. Axis Video Motion Detection lets the camera trigger an even when motion is detected; it intelligently ignores ordinary background motion to reduce false alarms. Axis Scene Metadata makes your video more useful and searchable automatically via efficient edge analysis. Store video in camera using a microSD card or through the network via a NAS or NVR solution. H.265 (HEVC) video compression makes your video feed extremely efficient. P3747-PLVE is ONVIF Profile G, M, S, and T Compliant for use with third-party devices and systems.

© 2025 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis P3747-PLVE Quick Specs:

• System on a Chip (SOC): ARTPEC-8
• Image Sensor: 4x 1/2.78" progressive scan RGB CMOS
• Video Resolution: up to 4x Quad HD (2560 x 1440 px)
• Frame Rate: up to 30 fps
• Video Compression: H.264 (AVC) Baseline, Main and High; H.265 (HEVC) Main; Motion JPEG
• Lens: 4x varifocal 3.18-7.42 mm, f/1.6-2.7
• Field of View:
• Horizontal (per sensor): 90° to 40°
• Vertical: 71.5° to 30°
• Camera Angle Adjustment:
• Pan: ±180°
• Tilt: -23° to -150°
• Rotate: +5° to -95°
• Minimum Illumination:
• Color: 0.15 lux
• Infrared: 0 lux
• Infrared Range: up to 65.6 ft
• Audio: 2-way (half duplex, full duplex)
• Physical Connectors:
• Ethernet: Gigabit RJ45 POE
• Audio & I/O: via portcast technology
• Power Over Ethernet (PoE): 802.3af/at Type 2 Class 4
• Edge Storage: microSD, microSDHC, microSDXC
• ONVIF Profiles: G, M, S, T
• Operating Temperature: -40°F to 122°F
• Durability Ratings: IP66, IK10, NEMA 4X
• Weight: 6.6 lb

Axis P3747-PLVE Network Security Camera Package Contents:

• Camera
• Installation Guide
• Connector Guard
• Cable Gasket
• Mounting Plate
• Dome Casing

Axis P3747-PLVE Documentation:

• Axis P3747-PLVE Datasheet
• Axis P3747-PLVE Installation Guide
