Axis P3748-PLVE 4x4K Ultra HD Multidirectional Panoramic IP Camera - 02898-001

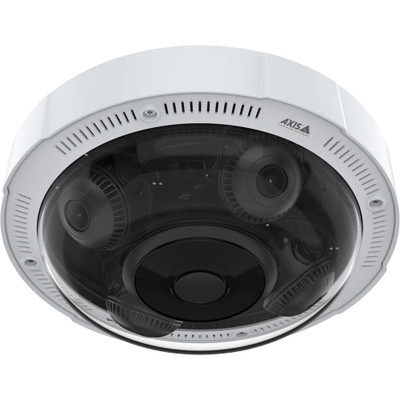

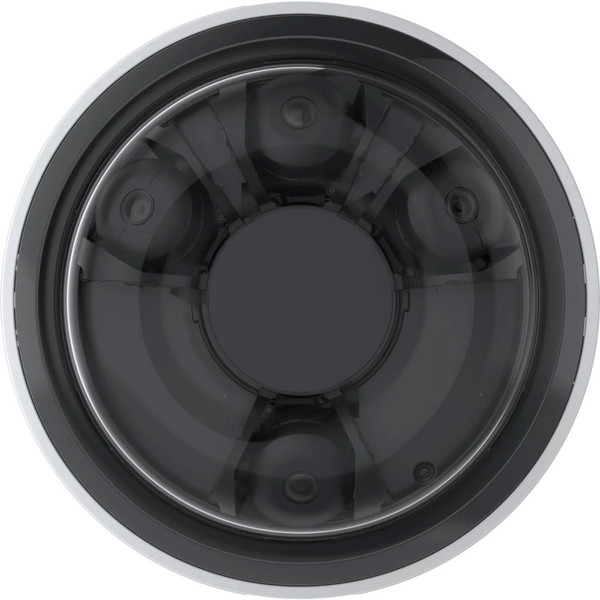

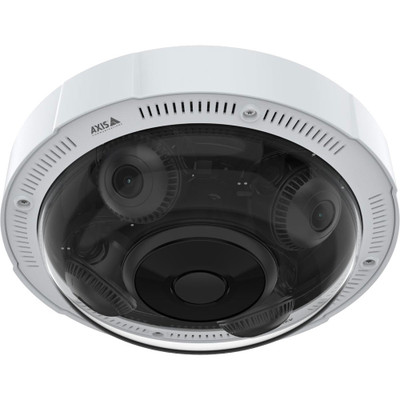

Axis P3748-PLVE is a quad-camera panoramic security camera with each of the four cameras being capable of taking 4K Ultra HD video. In other words, you get 360° video coverage with exceptional detail from one device. Better still, each camera has infrared illuminators with 65-foot range and individually controllable LEDs and a removable cut filter, so you get necessary detail even in no-light situations. Designed for indoor or outdoor installation, P3748-PLVE can be mounted on the ceiling for 360° coverage of open spaces on or a corner for 270° coverage. Axis also builds mounts and casings to complete your installation. P3748-PLVE uses four cameras to produce 360° video with each camera having a varifocal lens to get the right shot and a 8 MP (4K Ultra HD) sensor to gather forensic detail. Remote pan, tilt, roll, and zoom support lets you adjust each camera to get the optimal shot to protect your premises. Axis P3748-PLVE is a complete solution for comprehensive video surveillance in open areas.

That's not all. P3748-PLVE features a deep learning processing unit and comes with analytics solutions. Axis Object Analytics is a suite of AI-based analytics for reliable, actionable insights to improve security. Axis Video Motion Detection lets you use the camera as a motion detector to trigger events with intelligent technology so that it ignores ordinary background motion, reducing false alarms. Axis Scene Metadata makes video automatically searchable via efficient edge analysis. Store video in camera using a microSD card or through the network via a NAS or NVR solution. H.265 (HEVC) video compression greatly improves bandwidth and storage efficiency. P3748-PLVE is ONVIF Profile G, M, S, and T Compliant for use with third-party devices and systems.

© 2025 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis P3748-PLVE Quick Specs:

• System on a Chip (SOC): ARTPEC-8
• Image Sensor: 4x 1/2.9" progressive scan RGB CMOS
• Video Resolution: up to 4x 4K Ultra HD (3840 x 2160 px)
• Frame Rate: up to 15 fps
• Video Compression: H.264 (AVC) Baseline, Main and High; H.265 (HEVC) Main; Motion JPEG
• Lens: 4x varifocal 3.18-7.42 mm, f/1.6-2.7
• Field of View:
• Horizontal (per sensor): 103° to 41°
• Vertical: 54.5° to 23°
• Camera Angle Adjustment:
• Pan: ±180°
• Tilt: -23° to -150°
• Rotate: +5° to -95°
• Minimum Illumination:
• Color: 0.4 lux
• Infrared: 0 lux
• Infrared Range: up to 65.6 ft
• Audio: 2-way (half duplex, full duplex)
• Physical Connectors:
• Ethernet: Gigabit RJ45 POE
• Audio & I/O: via portcast technology
• Power Over Ethernet (PoE): 802.3af/at Type 2 Class 4
• Edge Storage: microSD, microSDHC, microSDXC
• ONVIF Profiles: G, M, S, T
• Operating Temperature: -40°F to 122°F
• Durability Ratings: IP66, IK10, NEMA 4X
• Weight: 6.6 lb

Axis P3748-PLVE Network Security Camera Package Contents:

• Camera
• Installation Guide
• Connector Guard
• Cable Gasket
• Mounting Plate
• Dome Casing

Axis P3748-PLVE Documentation:

• Axis P3748-PLVE Datasheet
• Axis P3748-PLVE Installation Guide
