Axis Q1656-DLE Radar-Video Fusion IP Camera - 02420-001

No reviews yet Write a Review
$2,499.00
$2,449.99
(You save $49.01 )
SKU:
02420-001
UPC:
7331021077027
Condition:
New
Availability:
Usually Ships Same Business Day
Shipping:
Calculated at Checkout
Warranty:
5 Year

Have a question?

  • Industry Best Pricing

    Quantity discounts available

  • Friendly Associates

    Pre-sales product and solution advice

  • Expert Tech Support

    Add-on tech support plans available

  • Super Fast Delivery

    Same day shipping on most orders

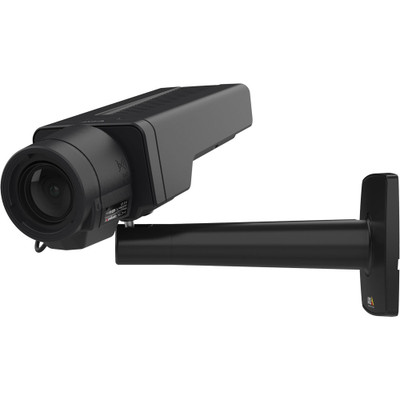

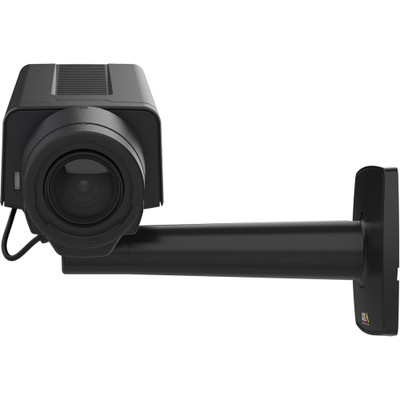

Axis Q1656-DLE Radar-Video Fusion IP Camera - 02420-001

$2,499.00
$2,449.99
(You save $49.01 )

Axis Q1656-DLE is a unique security solution that fuses a surveillance camera and a radar detector. This outdoor-ready camera provides wide-area intrusion protection around the clock. It supports video and radar analytics: video analytics offers precision object location and classification, radar analytics offers distance/speed measurement, radar signature and movement characteristics. Axis uses the intelligent fusion system to deal with notifications to best effect. The camera can detect by radar people out to 200 feet and vehicles out to 300 feet. It even has OptimizedIR infrared lights with 60 foot reach.

Q1656-DLE is powered by an ARTPEC-8 System on a Chip that means it can run the multiple included software: Object Analytics, Speed Monitor, and Video Motion Detection. The camera supports License Plate Verifier (not included) to add automatic license plate recognition, too. Store data in camera using a microSD card or via the network using a NAS or NVR solution. It has an extended operating temperature range of -40°F to 140°. It meets the IP66 and IK08 ratings and is compliant with ONVIF Profiles G, M, S, and T.

Axis Q1656-DLE Quick Specs:

  • System on a Chip (SOC): ARTPEC-8
  • Image Sensor: 1/1.8” progressive scan RGB CMOS
  • Video Resolution: up to Quad HD (2688 × 1512 px)
  • Frame Rate: up to 60 fps
  • Video Compression: H.264 (AVC) Baseline, Main and High; H.265 (HEVC) Main; Motion JPEG
  • Lens: varifocal 3.9-10 mm, f/1.5
  • Field of View:
    • Horizontal: 96° to 44°
    • Vertical: 63° to 26°
  • Minimum Illumination:
    • Color: 0.05 lux
    • B/W: 0.01 lux
    • Infrared: 0 lux
  • Infrared Range: up to 125 ft
  • Radar Sensor: RMCW (Frequency Modulated Continuous Wave)
  • Radar Detection Range: 16 to 200 ft (when detecting a person), 16 to 300 ft (when detecting a vehicle)
  • Radar Field of Detection (Horizontal): 95°
  • Audio: 2-way (full duplex)
  • Physical Connectors:
    • Ethernet: Gigabit RJ45 POE
    • Audio: 3.5 mm mic/line in, 3.5 mm line out
    • Terminal Block: two supervised and two unsupervised configurable inputs/digital outputs
    • RS485/RS422: RS485/RS422, 2 pcs, 2 pos, full duplex, terminal block
    • Power: DC input, terminal block
  • Power Over Ethernet (POE): 802.3af/at Type 2 Class 4
  • Edge Storage: microSD, microSDHC, microSDXC
  • ONVIF Profiles: G, M, S, T
  • Operating Temperature: -40°F to 140°F
  • Durability Ratings: IP66, IK08, NEMA 4X
  • Dimensions:
    • Height: 9.2 in
    • Width: 6.3 in
    • Length: 16 in
  • Weight: 11 lb

Axis Q1656-DLE Radar-Video Fusion Network Security Camera Package Contents:

  • Q1656-DLE Camera
  • T94Q01A Wall Mount
  • Sunshield
  • Connector Kit
  • Resistorx T20 Tool
  • Installation Guide
  • Windows Decoder 1-User License

Axis Q1656-DLE Documentation:
