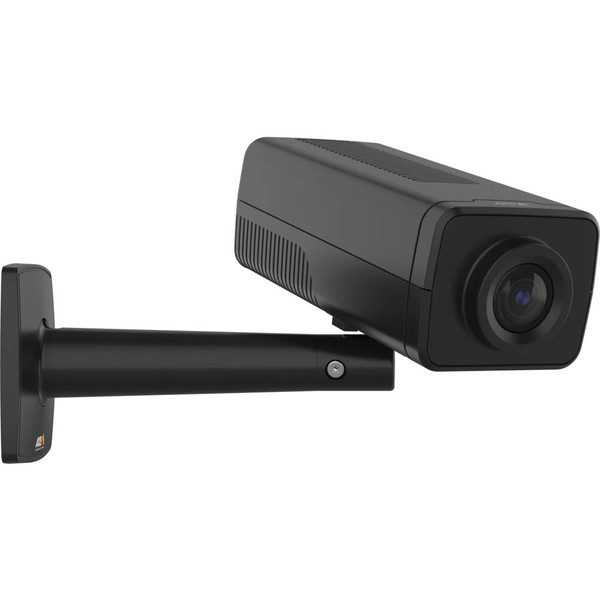

Axis Q1728 13 mm 4K Ultra HD Block IP Camera - 02839-001

Axis Q1728 is an AI-powered, 4K Ultra HD security camera that is built to fit many camera enclosures, including both first-party and third-party options, or even custom-built enclosures. Because you can use the camera with multiple enclosures, you can reuse an existing enclosure, saving resources, or buy a new enclosure to suit a changed scenario. As an IP surveillance camera, Q1728 offers exceptionally detailed 4K Ultra HD video using a large sensor, which improves lowlight performance. Its telephoto lens makes it great at picking out precise details from a scene. Axis improves image quality with advanced technologies like Lightfinder 2.0 and Forensic WDR.

Q1728 uses the purpose-built Axis ARTPEC-9 processor with deep learning processing unit to power advanced features. Axis Live Privacy Shield uses AI-based dynamic masking to protect privacy while providing necessary evidence. Axis Object Analytics automatically categorizes objects for efficient analysis. And Axis Image Health Analytics ensures high-quality images and appropriate field of view, so you'll always be getting the correct images you need. On top of support for H.264 (AVC) and H.265 (HEVC) video compression, Q1728 also supports AV1, which lowers bandwidth and storage requirements even more. Store video using a NAS or NVR solution, or in-camera using a microSD card. Axis Q1728 is ONVIF Profile G, M, S, and T compliant. If you want to use Q1728 for license plate reading, it supports the optional Axis License Plate Verifier feature.

This model of Axis Q1728 (02839-001) comes with a telephoto 13 mm lens. Q1728 is also available with a wide-angle 48 mm lens: search for Axis 02840-001.

© 2025 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis Q1728 13 mm Quick Specs:

• System on a Chip (SOC): ARTPEC-9
• Image Sensor: 1/1.2" progressive scan RGB CMOS
• Video Resolution: up to 4K Ultra HD (3840 x 2160 px)
• Frame Rate: up to 30 fps (with HDR), up to 60 fps (no HDR)
• Video Compression: H.264 (AVC) Baseline, Main and High; H.265 (HEVC) Main; Motion JPEG; AV1
• Lens: varifocal 5.9-13.3 mm, f/1.6-2.9
• Field of View:
• Horizontal: 108° to 49°
• Vertical: 58° to 27°
• Minimum Illumination:
• Color: 0.05 lux
• B/W: 0.01 lux
• Audio: configurable duplex
• Physical Connectors:
• Ethernet: Gigabit RJ45 PoE
• HDMI: HDMI Type D
• AHI: AHI (Axis Housing Interface)
• Audio: 3.5 mm mic/line in
• I/O: 6-pin 2.5 mm terminal block for 4x configurable inputs
• Serial: RS485/RS422, 2 pcs, 2 pos, full duplex, terminal block
• Power: DC input, terminal block
• Power Over Ethernet (POE): 802.3af/at Type 1 Class 3
• Edge Storage: microSD, microSDHC, microSDXC
• ONVIF Profiles: G, M, S, T
• Operating Temperature: 14°F to 140°F

Axis Q1728 13 mm Block IP Camera Package Contents:

• Camera
• Installation Guide
• Owner Authentication Key
• Stand
• Terminal Blocks Connectors
• Allen Key

Axis Q1728 Documentation:

• Axis Q1728 Datasheet
• Axis Q1728 Installation Guide
