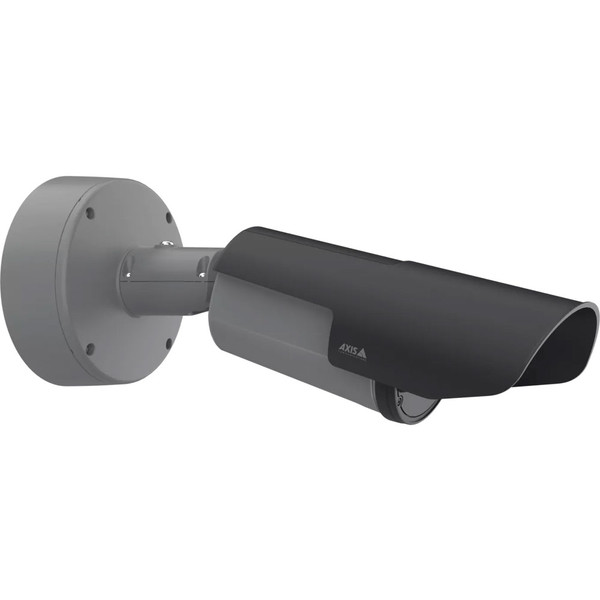

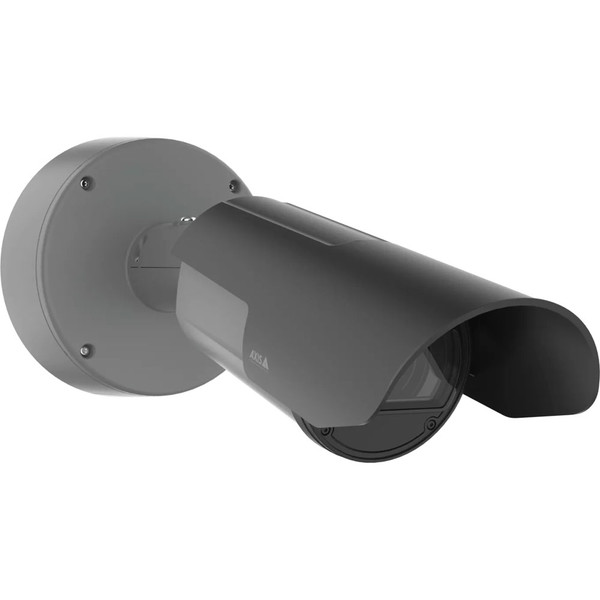

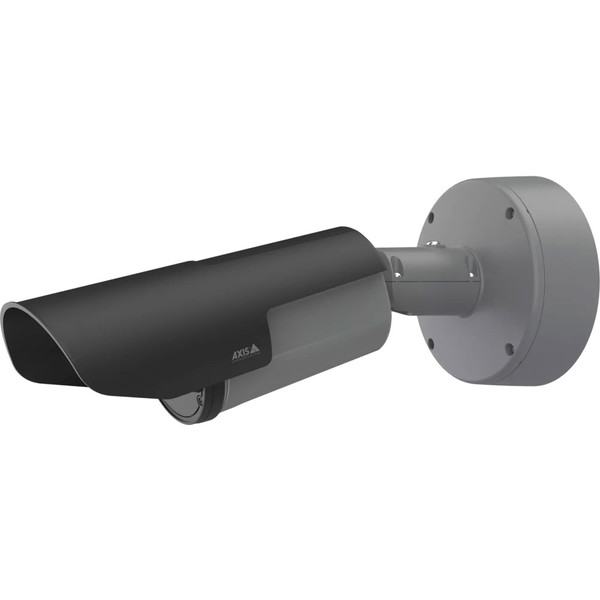

Axis Q1800-LE License Plate IP Camera - 03107-001

Axis Q1800-LE is a purpose-tuned IP camera for license plate capture. Q1800-LE can accurately read license plates 24/7 (day and night) at speeds up to 155 mph with an up to 328 foot daytime reading range or up to 164 foot nighttime reading range. It uses its custom-designed ARTPEC-8 System on a Chip for the ultimate in performance. Q1800-LE is intended to be usable with a wide range of standards-based, third-party license plate reading software, so you don't need to switch platforms to integrate the camera.

To improve video quality, Q1800-LE features extensive image processing technology, including Zipstream for making the feed efficient without losing detail, Forensic WDR for dealing with high-contrast lighting, Lightfinder 2.0 for getting naturalistic coloration in extreme low-light, and OptimizedIR for improving the performance of the infrared lights. The built-in IR lights have an up to 164 foot range in telephoto mode or up to 131 foot range in wide-angle mode. (Using the optional Axis T90D20 Infrared Illuminator, you can boost this range up to an amazing 328 feet.) With a professional varifocal 7-137 mm lens, you know you're getting top-tier optics. Electronic image stabilization deals with the vibrations that are a constant presence at roadways.

Q1800-LE is built to withstand the rigors of installation near vehicle traffic, as well as tough environmental conditions. It has a built-in weathershield and withstands wind speeds of up to 134 mph. It has an extended temperature range of up -40°F to 140°F. It meets the IP66 and NEMA 4X durability standards. Its aluminum enclosure with dehumidifying membrane meets the IK10 standard for impact resistance and even the glass front meets the IK08 standard. It has a discreet grey housing and black weathershield, so it won't stand out. Q1800-LE connects to the network via a Gigabit Ethernet port with up to 802.3bt Class 3 Type 6 PoE (Power Over Ethernet) support for powering the camera. The camera has a Gigabit Ethernet out port that can provide network connectivity and PoE power to an additional device, streamlining the network camera installation. Q1800-LE is compliant ONVIF Profiles G, M, S, and T.

© 2025 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis Q1800-LE Quick Specs:

• System on a Chip (SOC): ARTPEC-8
• License Plate Capture:
• Daytime Range: 66 to 328 ft
• Nighttime Range: 66 to 164 ft
• Vehicle Speed: up to 124 mph (with optional edge analytics), up to 155 mph (with server analytics)
• Coverage: single lane (with optional edge analytics), double lane (with server analytics)
• Distance from Road: up to 33 ft
• Image Sensor: 1/2.8" progressive scan RGB CMOS
• Video Resolution: up to 1080p Full HD (1920 x 1080 px)
• Frame Rate: up to 60 fps
• Video Compression: H.264 (AVC) Baseline, Main, High; H.265 (HEVC) Main; Motion JPEG
• Lens: varifocal 7-137 mm, f/1.5-4.0
• Field of View:
• Horizontal: 38° to 2.3°
• Vertical: 22° to 1.3°
• Camera Angle Adjustment:
• Pan: ±180°
• Tilt: 0° to -90°
• Roll: -90° to 270°
• Minimum Illumination:
• Color: 0.06 lux
• B/W: 0.01 lux
• Infrared: 0 lux
• Infrared Range: up to 164 ft
• Audio: 2-way (half-duplex)
• Physical Connectors:
• Ethernet: Gigabit RJ45 PoE in, Gigabit RJ45 PoE out
• Audio: 3.5 mm mic/line in
• I/O: 4-pin 2.5 mm terminal block for two configurable supervised inputs/digital outputs
• Power: DC input
• Power Over Ethernet (POE):
• Input: 802.3af/at Type 1 Class 3; 802.3at Type 2 Class 4; 802.3bt Type 3 Class 6
• Output: up to 802.3at Type 2 Class 4
• Edge Storage: microSD, microSDHC, microSDXC
• ONVIF Profiles: G, M, S, T
• Operating Temperature: -40°F to 140°F
• Durability Ratings: IP66, IK10, NEMA 4X
• Weight: 7.05 lb

Axis Q1800-LE License Plate Camera Package Contents:

• Camera
• Installation Guide
• Terminal Block Connector
• RJ45 Cable
• Connector Guard
• Cable Gaskets
• Owner Authentication Key

Axis Q1800-LE Documentation:

• Axis Q1800-LE Datasheet
• Axis Q1800-LE Installation Guide
