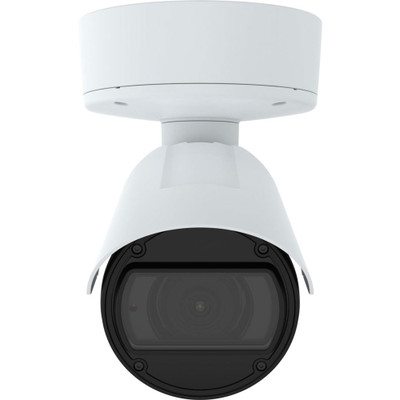

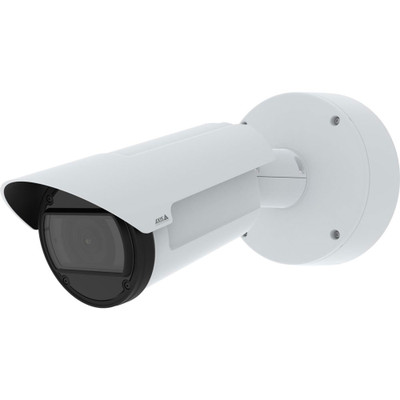

Axis Q1806-LE 4 MP 32x Zoom IP Camera - 02506-001

Axis Q1806-LE is an elite IP camera that takes video at up to 90 fps at up to twice the resolution of a 1080p Full HD camera. Designed for indoor or outdoor installation, Q1806-LE uses its 4.3-137 mm telephoto lens to offer an incredible 32× optical zoom, so you can get security recordings of distant objects with exceptional detail. Because the camera supports up to 90 fps video, you keep important detail even when objects are moving quickly like cars. Q1806-LE also has electronic image stabilization (EIS) to keep your video clear even in windy conditions, if the camera is installed near roadways, and similar locations where vibrations are a worry.

Q1806-LE has security built into it from the base with Edge Vault, hardware-based cybersecurity solution that brings together secure boot, signed firmware, device ID, and more. Object Analytics, which lets the camera automatically detect and classify humans and vehicles, is pre-installed. Q1806-LE has two Gigabit Ethernet ports, one to connect the camera to the network and one to connect to an additional device like speaker or strobe light. It can provide PoE (Power Over Ethernet) power to the connected device. Its IDC network connectors and roomy backbox protects your cabling. The camera has a microSD card slot for storing video in camera, or you can store/stream video through the network via a NAS or NVR. Q1806-LE is ONVIF Profile G, M, S, and T compliant.

© 2024 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis Q1806-LE Quick Specs:

• System on a Chip (SOC): ARTPEC-8
• Image Sensor: 1/1.8” progressive scan RGB CMOS
• Video Resolution: up to 4 MP (2880 × 1620 px)
• Frame Rate: up to 30 fps (with WDR), up to 90 fps (without WDR)
• Video Compression: H.264 (AVC) Baseline, Main and High; H.265 (HEVC) Main; Motion JPEG
• Lens: varifocal 4.3-137 mm, f/1.4-4.0
• Field of View:
• Horizontal: 60° to 2.3°
• Vertical: 39° to 1.3°
• Camera Angle Adjustment:
• Pan: ±180°
• Tilt: 0° to -90°
• Roll: -90° to 270°
• Minimum Illumination:
• Color: 0.08 lux
• B/W: 0.02 lux
• Infrared: 0 lux
• Infrared Range: up to 328 ft
• Physical Connectors:
• Ethernet: 2× Gigabit RJ45 POE
• Audio: 3.5 mm mic/line in
• I/O: 4-pin 2.5 mm terminal block for two configurable supervised inputs/digital outputs
• Power: DC input
• Power Over Ethernet (POE): up to 802.3bt Type 3 Class 6
• Edge Storage: microSD, microSDHC, microSDXC
• ONVIF Profiles: G, M, S, T
• Operating Temperature: -40°F to 140°F
• Durability Ratings: IP66, IP67, IK10, NEMA 4X
• Dimensions:
• Length: 16.18 in
• Diameter: 7.20 in
• Weight: 7.05 lb

Axis Q1806-LE Network Security Camera Package Contents:

• Q1806-LE Camera
• Installation Guide
• Terminal Block Connector
• RJ45 Cable
• Connector Guard
• Cable Gaskets
• Owner Authentication Key

Axis Q1806-LE Documentation:

• Axis Q1806-LE Datasheet
• Axis Q18 Series Installation Guide
