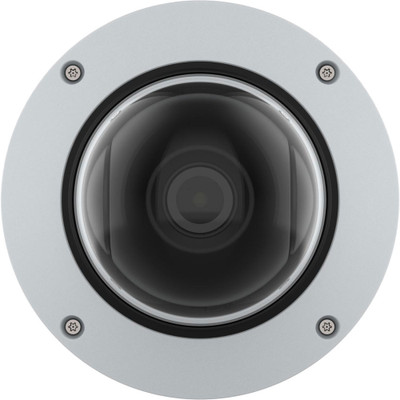

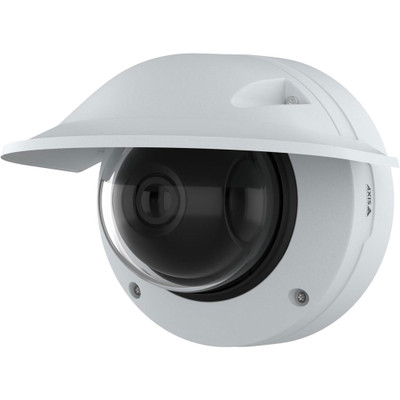

Axis Q3628-VE 4K Ultra HD Outdoor Dome IP Camera - 02617-004

Axis Q3628-VE is an elite IP camera with a full suite of surveillance-enhancing technologies: 4K Ultra HD sensor, remote camera angle adjustment, advanced analytics, and more. Designed for outdoor installation, Q3628-VE offers 4K Ultra HD (8 MP) resolution at up to 60 fps for clear, crisp, and blur-free video. The surveillance camera keeps the video clear even in windy or vibration-filled environments with electronic image stabilization (EIS). You can remotely adjust the angle of the camera to obtain the perfect shot: pan, tilt, roll, and zoom. Axis also incorporates progressive technologies to improve video quality like Lightfinder 2.0 and Forensic WDR. It has aluminum casing and comes with a weathershield to make it resistant to the weather, to impacts, and to vandals; it meets the IP66 and IK10 durability standards.

Q3628-VE is powered by the purpose-made ARTPEC-8 System on a Chip with deep learning processing unit. This native computer intelligence allows the camera to run the pre-installed analytics software that Axis provides: Object Analytics, Video Motion Detection, Speed Monitor, and Live Privacy Shield. Additionally, the camera features Edge Vault, a hardware-based cybersecurity solution that protects the camera and the IP camera system with secure boot, device ID, signed firmware, FIPS 140-2 Level 2 certified secure key, and more. Store video in camera using a microSD card or through the network via an NVR or NAS system. Q3628-VE is compliant with ONVIF Profiles G, M, S, and T.

© 2024 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis Q3628-VE Quick Specs:

• System on a Chip (SOC): ARTPEC-8
• Image Sensor: 1/1.2” progressive scan RGB CMOS
• Video Resolution: up to 4K Ultra HD (3840 × 2160 px)
• Frame Rate: up to 30 fps (with WDR), up to 60 fps (without WDR)
• Video Compression: H.264 (AVC) Baseline, Main and High; H.265 (HEVC) Main; Motion JPEG
• Lens: varifocal 6.2-12.9 mm, f/1.6-2.9
• Field of View:
• Horizontal: 103° to 48°
• Vertical: 56° to 27°
• Camera Angle Adjustment:
• Pan: ±190°
• Tilt: -8° to +75°
• Roll: ±97°
• Minimum Illumination:
• Color: 0.07 lux
• B/W: 0.01 lux
• Audio: 2-way (full duplex)
• Physical Connectors:
• Ethernet: Gigabit RJ45 POE
• Audio: 3.5 mm mic/line in
• I/O: 4-pin 2.5 mm terminal block for two configurable supervised inputs/digital outputs
• Power: DC input, terminal block
• Power Over Ethernet (POE): 802.3at Type 2 Class 4
• Edge Storage: microSD, microSDHC, microSDXC
• ONVIF Profiles: G, M, S, T
• Operating Temperature: -58°F to 131°F
• Durability Ratings: IP66, IK10, NEMA 4X
• Dimensions:
• Height: 5.6 in
• Diameter: 7.2 in
• Weight: 4.6 lb

Axis Q3628-VE Network Security Camera Package Contents:

• Q3628-VE Camera
• Weathershield
• Installation Guide
• Conduit Adapter
• Resistorx TR20 Screw Bit
• Terminal Block Conenctors
• Connector Guard
• Cable Gasket
• Owner Authentication Key

Axis Q3628-VE Documentation:

• Axis Q3628-VE Datasheet
• Axis Q36 Series Installation Guide
