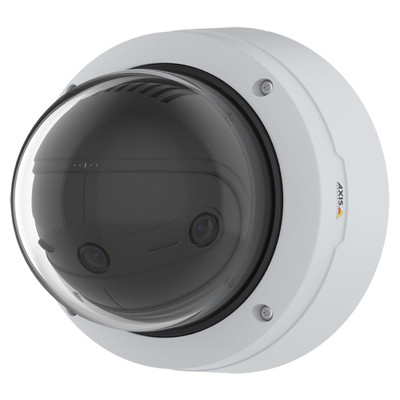

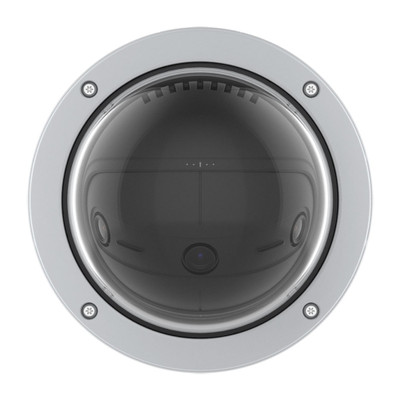

Axis Q3819-PVE 4x 5 MP Multisensor Panoramic Outdoor IP Camera - 01819-001

Axis Q3819-PVE is an elite panoramic IP camera that dynamically stitches together four video streams to provide a video stream with almost twice the resolution of 4K Ultra HD — incredible surveillance solution for open spaces. Designed for outdoor installation, Q3819-PVE uses Axis's powerful chipset to create a 14 MP video feed with a 180° x 38° field of view — 4K is just 8 MP. In other words, you get complete coverage with excellent detail. Better yet, it has built-in motors for pan, tilt and roll functionality. Axis Lightfinder technology improves low-light performance, giving you natural coloration for better identification.

On top of the video quality, Q3819-PVE offers advanced features like support for Object Analytics — highly accurate, granular, automatic classification of objects in the video plane to make your surveillance efficient. Axis Edge Vault and the integrated TPM module protect your camera. If you want audio integration, it supports that, too. Store video in camera using a microSD card or through the network using an NVR or NAS solution. Power the camera using Power Over Ethernet (PoE) — streamlined installation. The camera is IP66/IP67, IK10 and NEMA 4X rated with an extended operating temperature — and comes with a weathershield to improve protection from the elements. Q3819-PVE is ONVIF Profile G, M, S and T compliant — interoperable with third-party platforms. If you want 360° coverage, use two Q3819-PVE's mounted on the Axis T94V01C Dual Camera Mount (not included).

© 2022 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis Q3819-PVE Quick Specs:

• Connectivity: SIP/IP/VoIP
• Camera Sensors: 4x 5 MP 1/2.5" progressive scan RGB CMOS
• Lens: 4x fixed 5.9 mm, f/1.88
• Field of View:
• Horizontal: 180°
• Vertical: 38°
• Angle Adjustment:
• Pan: -135° to +135°
• Tilt: +15° to +92°
• Roll: -8° to +8°
• Minimum Illumination:
• Color: 0.16 lux
• B/W: 0.06 lux
• Video Compression: H.264 Baseline, Main, High; H.265 Main; Motion JPEG
• Video Resolution: up to 14.2 MP (8192 x 1728 px)
• Frame Rate: up to 30 fps
• Physical Connectors:
• Ethernet: 1x Gigabit RJ45 PoE
• Terminal Block: for 2 configurable supervised inputs/digital outputs
• 3.5 mm: 1x analog/digital mic/line in
• Power Over Ethernet (PoE): 802.3 at Type 2 Class 4
• Edge Storage: microSD, microSDHC, microSDXC
• ONVIF: Profile G, Profile M, Profile S, Profile T
• Durability Ratings: IP66/IP67, IK10, NEMA 4X
• Operating Temperature Range: -40°F to 122°F
• Dimensions (without weathershield):
• Height: 6.6 in
• Diameter: 7.6 in
• Weight: 4.5 lb

Axis Q3819-PVE Network Security Camera Package Contents:

• Q3819-PVE IP Camera
• Installation Guide
• Windows Decoder 1-User License
• Weathershield
• Resistorx TR20 Bit
• Connector Guard

Axis Q3819-PVE Documentation:

• Axis Q3819-PVE Datasheet
