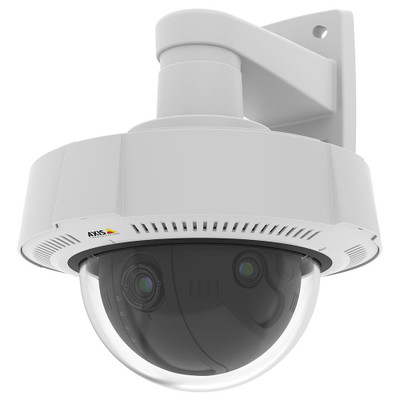

Axis Q6010-E 4x5MP Panoramic Outdoor Dome IP Camera - 01981-001

Note: Axis Q6010-E requires an Axis Q60-E Series PTZ IP Camera for operation (not included). It is not intended for use by itself.

Axis Q6010-E is a multidirectional IP camera that enables one-click PTZ control and automatic PTZ tracking for an Axis Q60-E Series PTZ IP Camera. The connected camera sits inside the Q6010-E camera unit to simplify installation — one cord for connection, one power supply for power, one bracket for mounting. Designed for outdoor installation, Q6010-E features four movable 5MP sensors and exchangeable and tiltable 2.8 mm lenses — for complete coverage of open spaces for active city surveillance at crosswalks, squares and more.

Axis Q6010-E is a network security camera with built-in intelligence. It provides one cohesive 20MP video stream day or night — and using the connected PTZ camera you can zoom in for more detail with just one click. The native intelligence automatically tracks objects with the scene — autopilot for PTZ detail. Zipstream and H.265 video compression keep the video feed lean — full resolution video without overloading bandwidth or storage. Store video in camera using a SD card or through the network using an NVR or NAS solution. The camera is IP66 and IK10 rated with an extended operating temperature range — rugged. Axis Q6010-E is ONVIF Profile G, Profile S, and Profile T compliant — interoperable.

Axis Q6010-E Quick Specs:

• Connectivity Type: IP
• Physical Connectors:
• Ethernet: 2x Gigabit PoE
• PoE: typical 9W, max 22W (without PTZ)
• Sensor: 4x 5MP 1/2.5" progressive scan RGB CMOS
• Resolution: up to 4x 2592 x 1944 px
• Frame Rate: up to 20 fps
• Video Codecs: H.264 Main, High; H.265 Main
• Lens: 4x fixed 2.8 mm, f/2.0
• Field of View:
• Horizontal: 360°
• Vertical: 84°
• Minimum Illumination:
• Color: 0.4 lux
• B/W: 0.03 lux
• Edge Storage: SD, SDHC, SDXC
• ONVIF: Profile G, Profile S, Profile T
• Operating Temperature: -40°F to 122°F
• Dimensions:
• Height: 7.9 in
• Diameter: 15.6 in
• Weight: 9.92 lb

Axis Q6010-E Network Security Camera Package Contents:

• Axis Q6010-E IP Camera
• Axis Q60-E Adapter
• Bayonet Screws
• Installation Guide
• Windows Decoder 1-User License
