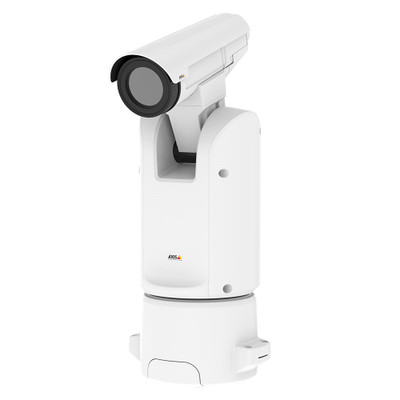

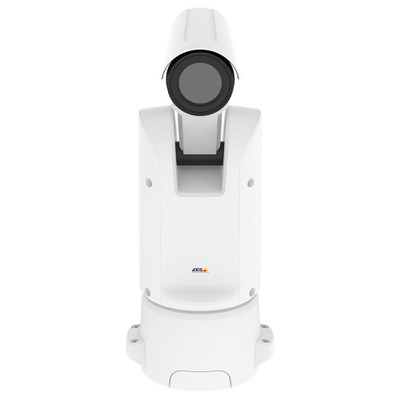

Axis Q8642-E 30fps Outdoor Thermal Positioning IP Camera - 01121-001

Axis Q8642-E is a network-connected thermal positioning camera for surveillance in any weather or lighting condition. Q8642-E features a pan-tilt mount that positions the camera smoothly and quickly for coverage in any direction. It offers 360° endless panning and a -90° to +45° tilting range. Q8642-E uses an athermalized lens with uncooled micro bolometer sensor to detect heat signatures. Electronic image stabilization clarifies the imagery. This model of Q8642-E takes VGA video at 30fps (frames per second).

Axis Q8642-E is intended for outdoor installation. It uses aluminum casing and germanium front window for extra durability. Q8642-E has been tested to withstand wind speeds of up to 106mph while retaining full pan-tilt functionality. It has an extended operating temperature range of -40°F to 140°F. The camera uses internal de-icing technology to heat the camera in extreme cold. Q8642-E offers RJ45 and SFP connectivity options, so you can use fiber for long-distance runs with copper Ethernet as a failover. Store video in camera using a microSD card or through the network using a NAS or NVR solution. Zipstream reduces network and storage load. Axis Q8642-E is ONVIF Profile G and Profile S compliant.

Axis Q8642-E IP Camera Quick Specs:

• Connectivity Type: IP
• Ethernet Ports: 1x Gigabit
• PoE: N/A
• Additional Interfaces:
• SFP Slot (SFP module not included)
• Power Connector
• I/O Connector: 6-pin terminal block with 4 configurable inputs/outputs
• Sensor: uncooled micro bolometer 384x288
• Resolution:
384x288 @ 30fps
• Video Codecs: H.264 Baseline, Main, High; Motion JPEG
• Lens: athermalized, f/1.2
• Field of View: 10.7° H
• Pan: 360° endless
• Tilt: -90° - +45°
• Edge Storage: microSD, microSDHC, microSDXC
• Operating Temperature: -40°F - 140°F
• ONVIF: Profile G, Profile S
• Durability Ratings: IP66, NEMA 250 Type 4X

Axis Q8642-E 30fps Positioning Network Security Camera Package Contents:

• Axis Q8642-E 30fps Camera
• Installation Guide
• Windows Decoder 1-User License
• Power Connector
• I/O Connector
• Torx Bits T20 and T30
