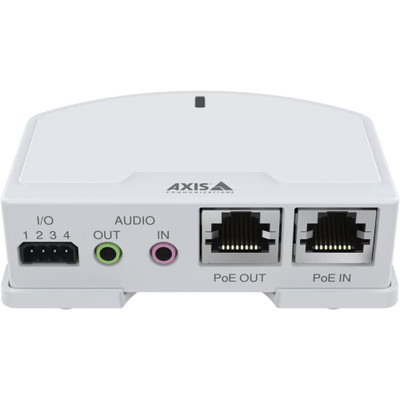

Axis T6101 Audio & I/O Interface - 01160-001

Axis T6101 gives two-way audio and configurable I/O ports to compatible Axis cameras that don't come with this functionality. Use the 3.5mm input and output jacks and the 4-pin I/O terminal block to connect a microphone, speaker, or I/O device. With T6101, you can merge audio and video into a single stream for a native experience and richer surveillance evidence. Connect T6101 using the same IP address as the camera.

The I/O interfaces of Axis T6101 let you integrate external sensors, devices, or relays to the camera. For example, you could integrate a door strike for opening and closing doors. The I/O inputs are supervised, so you can set up alarms in case of tampering. T6101 supports PoE to reduce cabling infrastructure. It offers pass-through power, so you can run PoE through T6101 to the camera, powering both devices.

T6101 offers two mounting options. You can mount the compact T6101 by itself. Or, for a more secure installation, mount T6101 inside an Axis T94S01P Conduit Back Box (not included).

Axis T6101 Interface Quick Specs:

• Interfaces:
• Ethernet: 2x 10/100 RJ45, PoE
• I/O: 4-pin 2.5mm terminal block
• Audio: 3.5mm mic/line in, 3.5mm line out
• PoE: 802.3af/802.3at Type 1 Class 2 or Class 3 (selectable)
• Audio Streaming: 2-way
• Audio Codecs: AAC-LC, G.711, G.726, Opus
• Operating Temperature: -40°F - 122°F
• ONVIF: Profile S, Profile G

Axis T6101 Audio & I/O Interface Package Contents:

• Axis T6101 Interface
• Installation Guide
• Mounting Bracket
• I/O Connector
