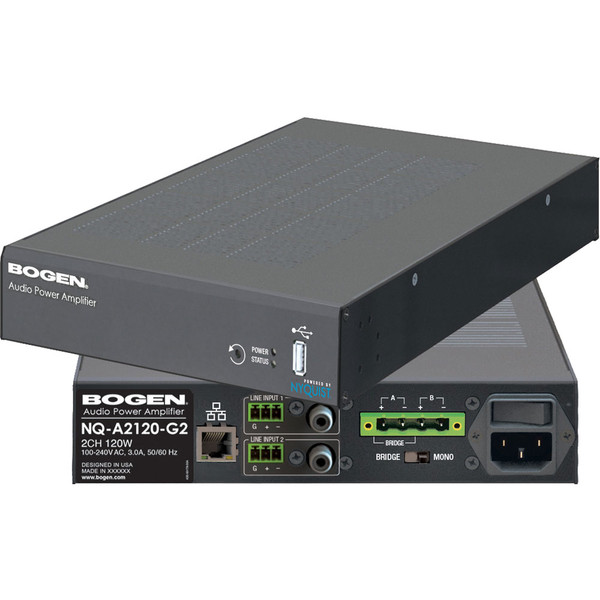

Bogen NQ-A2120-G2 Nyquist 2-Channel Networked Audio Power Amplifier

Bogen NQ-A2120-G2 is a powerful 2-channel amplifier for use as part of a Bogen Nyquist IP-based paging system. In 1-channel mode, NQ-A2120-G2 can deliver 240W for 70V, 25V, or 8-Ohm paging speakers. In 2-channel mode, it can deliver 120W for 25V or 4-Ohm speakers. The audio power amplifier puts the latest Class D amplifier technology to use, enhancing sound quality, reliability, and efficiency. NQ-A2120-G2 has integrated DSP software that lets you optimize speaker performance and audio quality by giving you an intuitive GUI with 16-band graphic equalizer, adjustable high pass and low pass filters, and more.

Part of the Nyquist IP-Based Paging System, NQ-A2120-G2 is a networked paging amplifier for providing network-based audio input like paging. The amplifier has a dedicated balanced line input (both Phoenix and XLR options) that can be routed over the Nyquist network. For a professional paging power amplifier, Bogen NQ-A2120-G2 is a great solution.

© 2025 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Bogen NQ-A2120-G2 Quick Specs:

• Power Output:
• 1-Channel Mode: 240W @ 70V/25V/8-Ohm
• 2-Channel Mode: 120W @ 25V/4-Ohm
• Physical Connectors:
• Power: 1x 10A line cord
• Phoenix: 1x balanced 3-pin input, 2x 4-pin Phoenix output
• XLR: 1x balanced 3-pin Neutrik input
• Ethernet: 1x 10/100 RJ45
• USB: 1x USB-A 2.0
• AC Current: up to 3A

Bogen NQ-A2120-G2 Networked Audio Power Amplifier Package Contents:

• Amplifier

Bogen NQ-A2120-G2 Documentation:

• Bogen NQ-A2120-G2 Specifications Sheet
• Bogen NQ-A2120-G2 Installation and Use Manual
• Bogen NQ-A2120-G2 Configuration Guide
