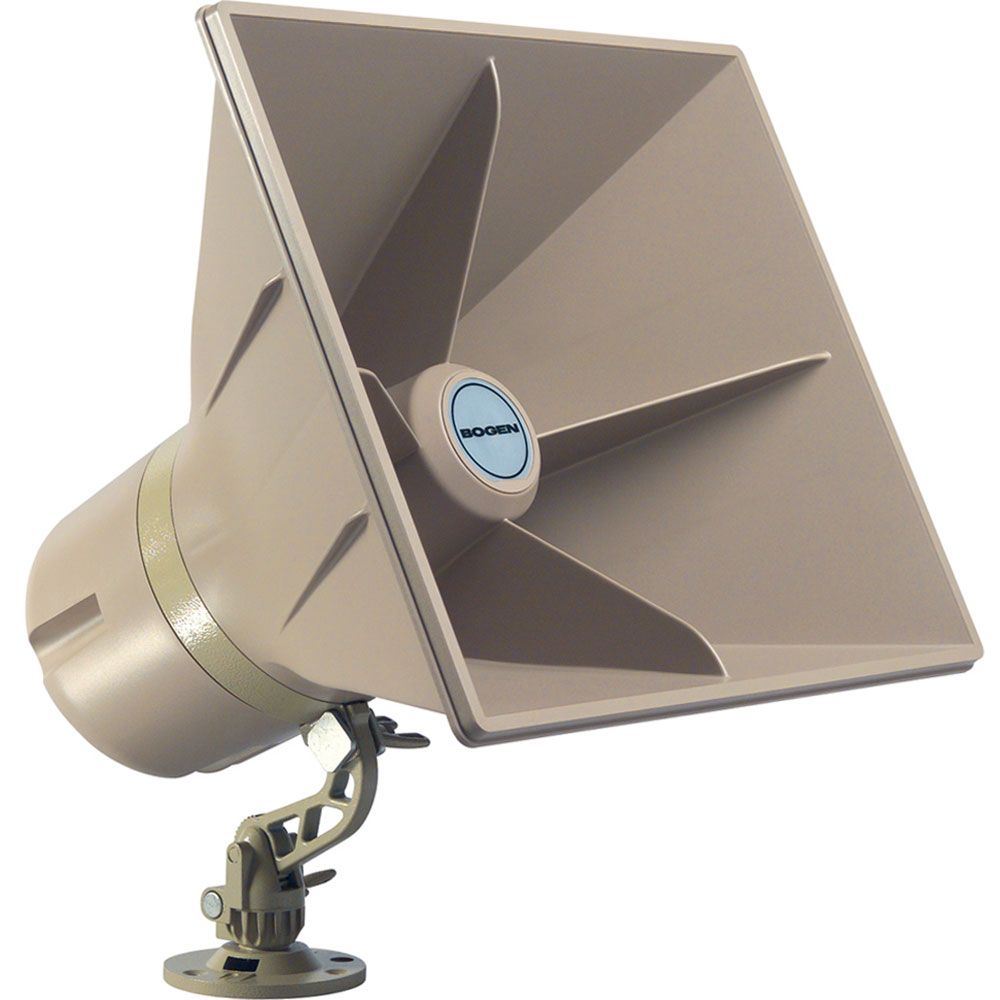

Bogen SAH30 30W Self-Amplified Horn Speaker

Bogen SAH30 is a 30W self-amplified horn speaker that uses digital switching amplifier technology to lessen DC current draw and heat dissipation, benefiting your paging system in many ways. For example, this paging amp tech means you require fewer power supplies and are able to have longer cable runs, improving system efficiency. The amp tech also means the SAH30 can work at a higher ambient temperature than comparable horn speakers. The loudspeaker is an all-around solution, working equally well for traditional paging, emergency alerts, and continuous background music playing.

SAH30 is a flare-shaped horn speaker whose shape controls sound dispersion. Its shape provides predictable sound coverage, enhances volume, and improves voice intelligibility. The speaker is designed to be rotated, tilted, and/or swiveled in any direction, which means it will fit your specific installation requirements. Designed for indoor or outdoor installation, it has a weatherproof, UV-protected plastic housing and cast aluminum swivel mount.

© 2024 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Bogen SAH30 Quick Specs:

• Typical Current Consumption: 17 CU (850 mA)
• Power Supply Voltage (nominal): 24V DC
• Max. Power Rating: 30W
• Dispersion: 120° × 90°

Bogen SAH30 Self-Amplified Horn Speaker Package Contents:

• SAH30 Speaker Horn
• Mounting Base
• Tapered Pin
• Wing Nut
• Access Cover
• Electrical Box Strap
• Instruction Sheet
• Electrical Box Strap Mounting Instruction Sheet

Bogen SAH30 Documentation:

• Bogen SAH30 Spec Sheet
• Bogen SAH30 Manual
