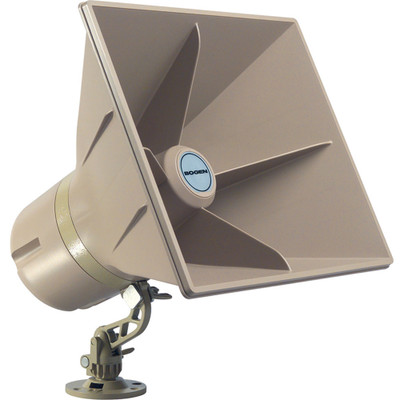

Bogen SAH5 5W Self-Amplified Horn Speaker

Bogen SAH5 is a 5W self-amplified horn speaker for indoor or outdoor installation. SAH5 uses digital switching amplifier technology to reduce DC current draw and heat dissipation, which improves your paging system in multiple ways like requiring fewer power supplies, longer cable runs. Additionally, it means the paging speaker can operate at a high ambient temperature than a comparable speaker. It works for continuous background music playing, as well as traditional paging broadcasts and emergency alerts.

SAH5 has a flare-shaped horn that helps to control sound dispersion, enhancing volume and intelligibility. The loudspeaker can be rotated, tilted, and/or swiveled to orient it in whatever direction you need. Designed for indoor or outdoor installation, it has a weatherproof, UV-protected plastic housing and cast aluminum swivel mount.

© 2024 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Bogen SAH5 Quick Specs:

• Typical Current Consumption: 4 CU (200 mA)
• Power Supply Voltage (nominal): 24V DC
• Max. Power Rating: 5W
• Dispersion: 120° × 90°

Bogen SAH5 Self-Amplified Horn Speaker Package Contents:

• SAH5 Speaker Horn
• Mounting Base
• Tapered Pin
• Wing Nut
• Access Cover
• Electrical Box Strap
• Instruction Sheet
• Electrical Box Strap Mounting Instruction Sheet

Bogen SAH5 Documentation:

• Bogen SAH5 Spec Sheet
• Bogen SAH5 Manual
