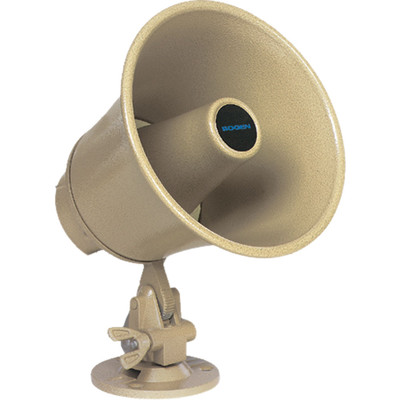

Bogen SPT30A Outdoor Horn Speaker

Bogen SPT30A is a powerful, weatherproof horn speaker for analog paging systems. Designed for indoor or outdoor installations, SPT30A is usable with 1-way or 2-way voice paging and music reproduction. It is built with a wide frequency response, which means it improves intelligibility and efficiency, thus it is usable for both voice paging and music playing. SPT30A is a solution for many common locations, including warehouses, industrial plants, factories, schools, construction sites, transportation terminals, public areas, and more.

SPT30A is a reentrant horn speaker for 25V and 70V paging systems with a built-in rotary tap impedance selector and screw terminals, streamlining installation and making it easier to dial in the correct volume. The speaker diaphragm is self-aligning and field-replaceable. SPT30A has an all-metal construction and textured mocha enamel finish. The tilt-and-swivel base and all-purpose mounting bracket mean you will be able to position the speaker optimally from the get-go.

© 2024 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Bogen SPT30A Quick Specs:

• Power Rating: 30W continuous, 40W equalized
• Sound Dispersion Angle: 100°
• Impedance: 25V, 70V
• Impedance Selector Switch Settings:
• 25V: 15W, 7.5W, 3.7W, 1.8W
• 70V: 30W, 15W, 7.5W, 3.7W, 1.8W

Bogen SPT30A Reentrant Horn Loudspeaker Package Contents:

• Horn Loudspeaker
• All-Purpose Mounting Bracket

Bogen SPT30A Documentation:

• Bogen SPT30A Datasheet
• Bogen SPT30A Manual
