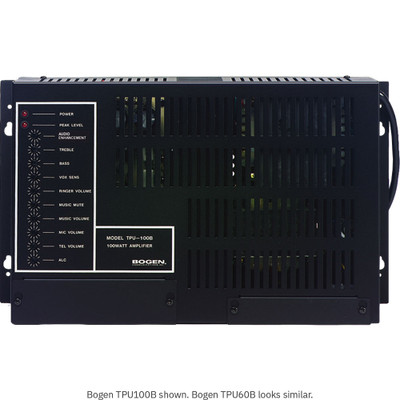

Bogen TPU100B Telephone Paging Amplifier

Bogen TPU100B is a 100W telephone paging amplifier that can be wall-mounted. TPU100B is an analog paging amplifier for 70V and 25V speakers. It handles pages from a telephone or microphone, as well as music input for background music playing. To improve audio quality, it has an Audio Enhancement circuit. It can automatically mute music when a voice page is broadcasted using its voice-activated, variable level, music mute function. After the page is over, the music fades back gently. TPU100B includes night ringer functionality. You can double the input/output power by bridging two TPU amplifiers.

TPU100B has numerous I/O connections. For input terminals, it has connections for a 600-Ohm balanced telephone line, Lo-Z balanced microphone, and background music. It has individual controls for telephone/microphone paging volume, music volume, night ringer volume, VOX sensitivity, and music mute level. It comes with wall-mounting brackets already attached, making installation simple. While intended to be wall-mounted, TPU100B can be rack-mounted using the Bogen RPK82 Rack Mount Kit (not included).

© 2024 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Bogen TPU100B Quick Specs:

• Rated Output Power: 100W RMS
• Inputs:
• TEL: 600 Ohms, balanced, transformer isolated
• Music: Hi-Z AUX, RCA jacks or screw terminals
• MIC: Lo-Z balanced, screw terminal connection
• Music Mute: mutes music when shorted
• Contact Ring: sounds night ringer tone when customer-supplied dry contacts are closed
• TEL Ring: sounds night ringer in response to 90V ring signal
• Bridging: permits bridging of two amplifiers
• Outputs: 25V/25VCT/70V, 16 Ohms balanced or unbalanced
• Overhead Protection: 2A

Bogen TPU100B Telephone Paging Amplifier Package Contents:

• Amplifier
• 4x Wall-Mounting Screws with Synthetic Washers
• 4x Rubber Feet with Screws
• Installation and Use Manual

Bogen TPU100B Documentation:

• Bogen TPU100B Datasheet
• Bogen TPU100B Manual

ut leveling can keep inputs at the same volume level as they are played over the paging system.

Wall mount the Bogen TPU100B amplifier, or rack mount it with a compatible mounting kit. Controls for bass, treble and volume let you manage the amplifier's inputs. VOX sensitivity control helps to block ambient noise from entering the paging system.

Bogen TPU100B Paging Amplifier Quick Specs:

• Power Rating: 100 watts
• Frequency Response: 70 Hz to 15 kHz
• Outputs: 16 ohms, 25V, 70V
• Inputs: tel, music, mic, music mute, contact ringing, tel ring, bridging
• Connections: screw terminals, RCA jack
• Additional Controls: bass, treble
• Dimensions: 14.25" x 8.375" x 3.625"
• Overload Protection: electronic, thermal

Bogen TPU100B Telephone Paging Amplifier Package Contents:

• Bogen TPU100B telephone paging amplifier
• Attached wall mount brackets
