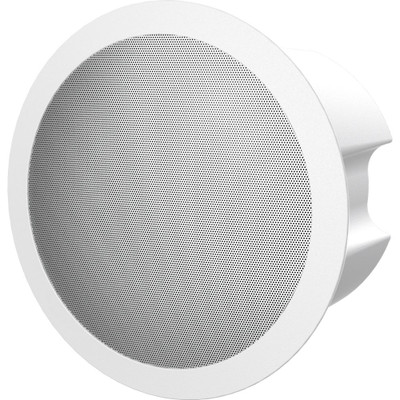

Fanvil FH-S01 Talkback SIP Ceiling Speaker

Fanvil FH-S01 is a powerful SIP ceiling speaker — network integrated paging solution. This talkback speaker is intended for ceiling mounting indoors. FH-S01 works for numerous applications, including public broadcasting — and it supports up to 10 multicast zones with prioritization. Configure and manage the speaker remotely via the web-based UI.

FH-S01 features a 15 W speaker with a built-in Class D amplifier — loud, clear broadcasting. Wideband audio quality and a digital signal processor (DSP) ensure high-intelligibility. Its built-in omni-directional microphone enables talkback functionality. Connect the speaker to your network via an Ethernet cable — and power it via PoE.

© 2022 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Fanvil FH-S01 Quick Specs:

• Communications Protocol: SIP
• SIP Lines: 2
• Speaker: 15 W with integrated Class D amp
• Microphone: omni-directional
• Physical Interfaces:
• Ethernet: 1x 10/100 RJ45 PoE
• Power: 1x DC power input
• I/O: 1x short-circuit input, 1x short-circuit output
• PoE (Power Over Ethernet): 802.3 af Class 0

Fanvil FH-S01 SIP Ceiling Speaker Package Contents:

• FH-S01 Speaker
• Quick Installation Guide

Fanvil FH-S01 Documentation:

• Fanvil FH-S01 Datasheet
