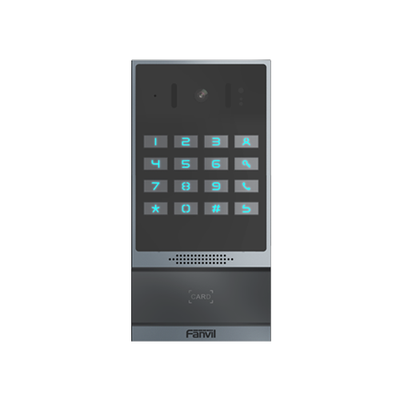

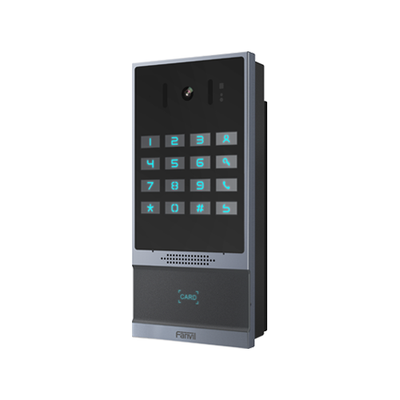

Fanvil i20S RFID SIP Intercom

Fanvil i20S is a network-enabled intercom with built-in 125 kHz RFID card reader for simple, secure access control and door entry. Fanvil i20S runs the open SIP protocol, which means you can have broad choice of VoIP platforms to use, including 3CX, BroadSoft, Asterisk, Xorcom, and Huawei. Running SIP makes i20S easier to manage than traditional door phones. The full-duplex intercom gives you wideband audio for easier to understand calls.

Fanvil i20S has a clear, easy to read keypad for dialing numbers. Up to 500 numbers and 500 RFID cards can be stored. It has a 3W speaker for clearly broadcasting audio. The single Fast Ethernet port supports PoE for powering the intercom through the network. Fanvil includes professional security and networking features like 802.1x authentication, Open VPN support, and DSCP Quality of Service control.

Fanvil i20S Quick Specs:

• Connectivity: VoIP
• Communications Protocol: SIP
• SIP Lines: 2
• Ethernet Port: 1x 10/100
• PoE: 802.3af Class 3
• Additional Interfaces:
• Passive switch output
• Active switch output
• RFID: EM4100 125 kHz
• Speaker: 3W, 4Ω
• Audio Codecs: G.711μ/a, G.723.1, G.726-32, G.729AB, G.722
• QoS: DSCP
• Operating Temperature: 14°F - 140°F
• Ratings: IP65
• Dimensions: 6.30" x 3.66" x 1.38"

Fanvil i20S RFID VoIP Intercom Package Contents:

• i20S intercom
• Connectors
• Quick installation guide
• CD
• Screw and wrench
• RFID cards

Fanvil i20S Intercom Documentation:

• Fanvil i20S Datasheet
• Fanvil i20S User Manual
• Fanvil i20S Quick Installation Guide
• Fanvil i20S Mounting Dimensions
