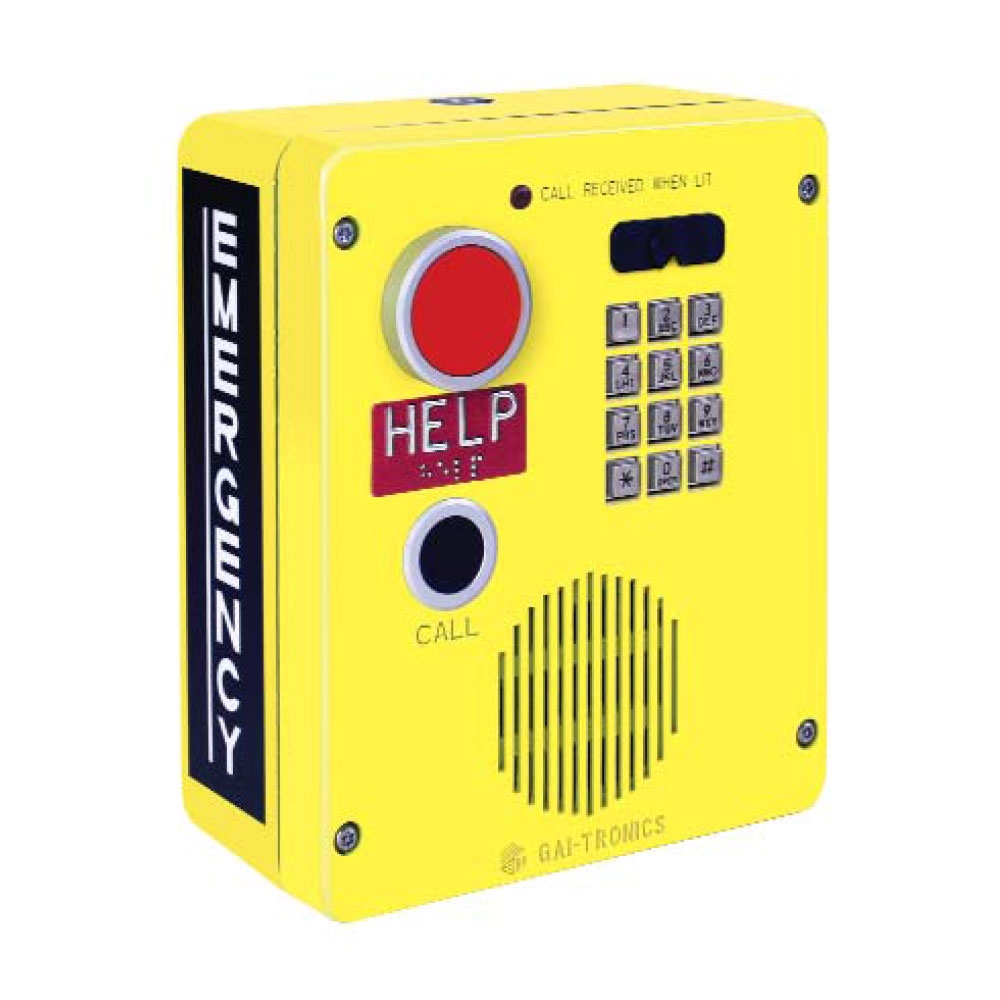

GAI-Tronics Red Alert Surface-Mount Emergency Phone w/Keypad, 394AL-001

The GAI-Tronics Red Alert Emergency phone with keypad, model 394AL-001, is designed for surface mounting applications. This phone is Type 3R weather-resistant and has a safety yellow epoxy finish in a rugged cast aluminum enclosure. This phone is also line powered, so it does not require an external power supply making for flexible installation.

Other features of the GAI-Tronics 394AL-001 include two programmable auxiliary outputs for peripheral equipment control, standard or SMART operation, 3-number rollover, a call received "when lit" LED, and auto answer with silent monitoring. This phone also has an operating range between -20 degrees celsius and +60 degrees celsius.

GAI-Tronics Red Alert Surface-Mount Emergency Phone Quick Specs:

• Connectivity: Analog, RJ-11
• TMA Compatibility Profile Type: GTC SMART Hands-free
• Audio Output: 1 kHz tone @ 87 ± 3 dB SPL @ 1 meter with 40 mA loop current
• Battery Voltage (tip and ring): 24 V dc or 48 V dc
• Phone Line Requirements: Loop start, central office (CO), or Analog station port (PBX, PABX, or KSU)
• Minimum Loop Current: 24 mA (35 mA recommended)
• Signaling: DTMF 100 ms tone
• Dimensions: 9.5 H x 8.0 W x 4.0 D inches
• Keypad:12 Button, Braille Keypad
• Enclosure: Non-metallic, Safety Yellow
• Operating: -4F to +140F (-20C to +60C)
• Relative Humidity: Up to 95%, Non-condensing

GAI-Tronics 394AL-001 Red Alert Emergency Phone Package Contents:

• GAI-Tronics 394AL-001 Phone
