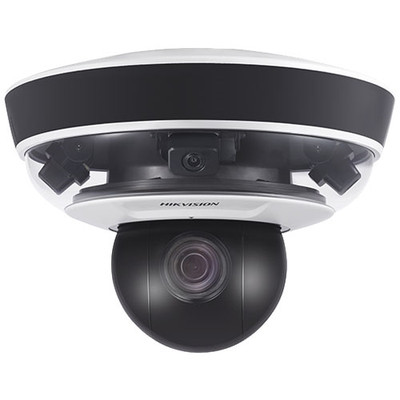

Hikvision DS-2PT3326IZ-DE3 3x1080p PanoVu Panoramic & 4x PTZ Indoor Dome IP Camera

Hikvision DS-2PT3326IZ-DE3 is a tremendous advance for IP video security: an integrated PTZ camera and 3-lens panoramic camera in a single device. Designed for indoor installation, DS-2PT3326IZ-DE3 is, essentially, two cameras in one. The first camera is a full 1080p Full HD PTZ camera: 350° panning range, 90° tilting range, and 4x optical zoom with 8x digital zoom. The second is a 360° panoramic camera: three 1080p Full HD sensors with fixed 2mm lenses for total coverage via three separate videos streams. You can view video from all four sensors at the same time for general surveillance plus detailed analysis — all from one installed device. On top of that, DS-2PT3326IZ-DE3 has built-in infrared lights for surveillance in complete darkness with both PTZ and panoramic cameras.

Hikvision DS-2PT3326IZ-DE3 features Digital WDR and 3D DNR for clarifying the image quality and ensuring strong shadows and similar harsh lighting doesn't negatively affect the picture. H.265 video compression greatly reduces the size of the video streams, saving you a lot on bandwidth and storage. The camera has audio I/O connectors for adding an additional layer of security. Store video in camera using a microSD card or through the network using an NVR and NAS solution.

Hikvision DS-2PT3326IZ-DE3 Quick Specs:

• Connectivity Type: IP
• Ethernet Ports: 1x 10/100
• PoE: PoE+
• Additional Interfaces:
• Audio: 1-ch input, 1-ch output
• Panoramic Camera:
• Sensors: 3x 1/2.8" progressive scan CMOS
• Lenses: 3x fixed 2mm, f/2.0
• Field of View:
• Horizontal: 128.5°
• Vertical: 75.7°
• Diagonal: 144°
• Resolution: up to 3x 1080p @ 30fps
• Minimum Illumination:
• Color: 0.05 lux
• B/W: 0.01 lux
• Infrared: 0 lux
• PTZ Camera:
• Sensor: 1/2.8" progressive scan CMOS
• Lens: varifocal 2.8-12mm, f/2.0-2.4
• Field of View:
• Horizontal: 120° to 56.6°
• Vertical: 61.8° to 31.7°
• Diagonal: 149° to 65°
• PTZ:
• Pan: 0° to 350°
• Tilt: 0° to 90°
• Zoom: 4x optical, 8x digital
• Resolution: up to 1080p @ 30fps
• Minimum Illumination:
• Color: 0.05 lux
• B/W: 0.01 lux
• Infrared: 0 lux
• Infrared Range: 33ft (10m)
• Video Codecs: H.265, H.264, MJPEG
• Audio Codecs: G.711u/a, G.722.1, G.726, MP2L2
• Edge Storage: microSD, microSDHC, microSDXC (up to 256GB)
• Operating Temperature: +14°F to +122°F
• Durability Ratings: TVS 2000V

Hikvision DS-2PT3326IZ-DE3 Network Security Camera Package Contents:

• Hikvision DS-2PT3326IZ-DE3 Camera
• Installation Hardware
• Quick Start Guide

Hikvision DS-2PT3326IZ-DE3 Documentation:

• Hikvision DS-2PT3326IZ-DE3 Data Sheet
