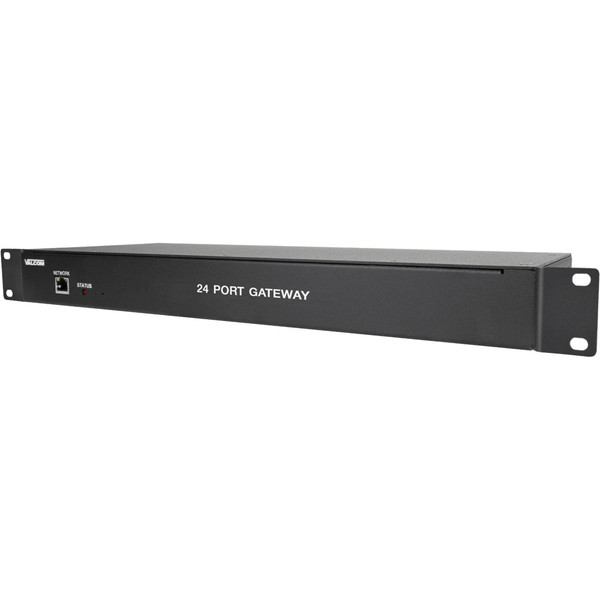

Valcom EZ-GW24 ezIP 24-Port One-Way Gateway

Valcom EZ-GW24 is a gateway that helps you modernize an existing analog paging or intercom system. EZ-GW24 features 24 zone/speaker connections. It works with 25V, 45-Ohm, or self-amplified paging speakers. Part of the Valcom ezIP Series, it works with the Valcom ezIP system. It can also be upgraded to the VIP protocol, making it compatible with Valcom IP devices.

EZ-GW24 supports up to 24 paging zones with up to 5 Valcom 45-Ohm speakers per zone with a maximum tap of 15W per zone. It supports up to 120W across all zones. EZ-GW24 supports up to 45 self-amplified speakers per zone with a maximum of 240 self-amplified speakers across all zones. EZ-GW24 connects to the IP network via a standard Ethernet connection and is powered via an internal power supply. EZ-GW24 is intended for rack-mounting in a standard 19-inch (1U) rack.

© 2025 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Valcom EZ-GW24 Quick Specs:

• VoIP Protocol: SIP
• Physical Connectors:
• Audio: 24x speaker zone connections (screw terminal blocks)
• Ethernet: 1x 10/100 RJ45

Valcom EZ-GW24 ezIP 24-Port One-Way Gateway Package Contents:

• Gateway

Valcom EZ-GW24 Documentation:

• Valcom EZ-GW24 Tech Specs
• Valcom EZ-GW24 Installation Manual
